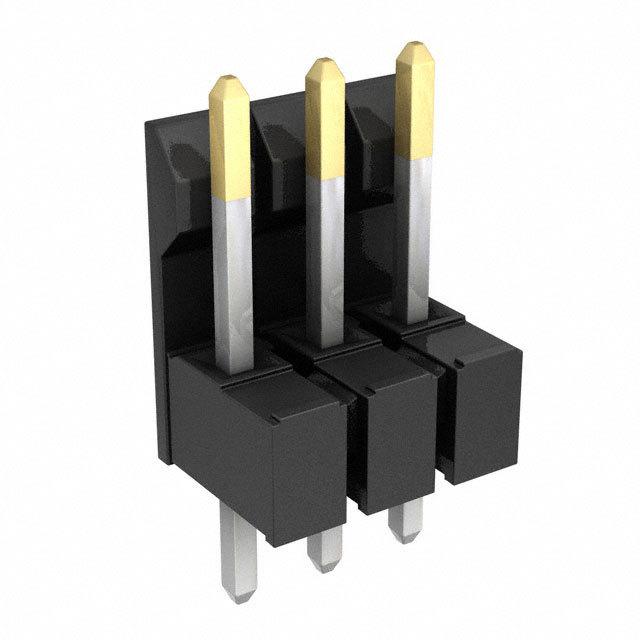

Same model may have multiple batches, images only for reference.

22280031

Name: 22280031
Brand: Molex, LLC
SKU: 17
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	22280031
Manufacturer	Molex, LLC
Catalog	Rectangular Connectors
Description	KK 100 HDR FRLK VERT 3POS
Datasheet	22280031 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Connectors, Interconnects
Manufacturer	Molex, LLC
Packaging	Bulk
Status	Active
Connector Type	Header, Breakaway
Contact Type	Male Pin
Pitch - Mating	2.54mm
Style	Board to Board or Cable
Shrouding	Shrouded - 1 Wall
Number of Positions	3
Number of Positions Loaded	All
Number of Rows	1
Mounting	Through Hole
Termination	Solder
Fastening Type	Friction Lock
Contact Length - Mating	0.295" (7.49mm)
Contact Length - Post	0.120" (3.05mm)
Overall Contact Length	0.540" (13.72mm)
Insulation Height	0.337" (8.56mm)
Contact Shape	Square
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	15μin (0.38μm)
Contact Finish - Post	Tin
Insulation Material	Polyamide (PA), Nylon, Glass Filled
Material Flammability Rating	UL94 V-0
Insulation Color	Black
Contact Finish Thickness - Post	100μin (2.54μm)
Applications	Automotive, General Purpose, Medical, Telecommunications
Win Source Part Number	197037-22280031
Popularity	Medium
Supply and Demand Status	Balance
Ultra Librarian 3D Model	Ultra Librarian 22280031 CAD Model

Description

Product Overview for 22280031

The 22280031 is a reliable component offering exceptional connectivity solutions. Its advanced features make it a staple in communication-intensive applications.

Applications

Telecommunication systems
Networking equipment
Wireless communication devices
Internet infrastructure development

Features and Benefits

Superior connectivity options
Enhanced signal processing capabilities
Scalable architecture
Proven reliability and support

Highly recommended for projects focused on advancing communication technologies.
