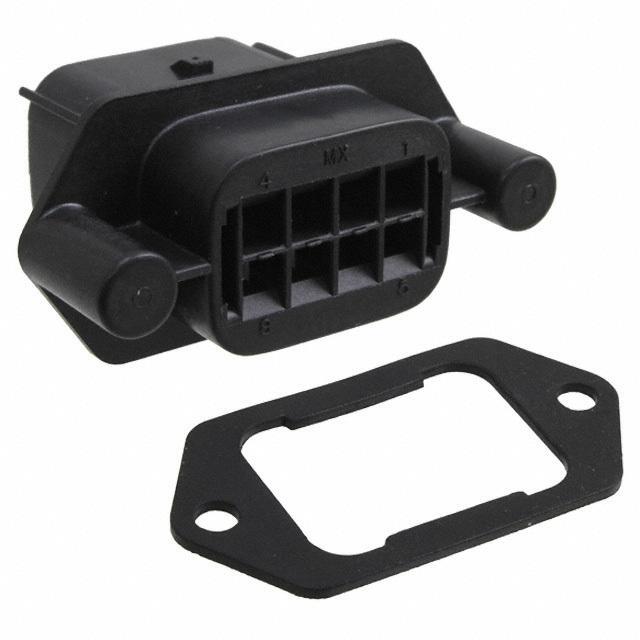

194290037 Molex, LLC
Same model may have multiple batches, images only for reference.

194290037

Part No 194290037
Manufacturer Molex, LLC
Catalog Rectangular Connectors
Description 8-WAY PLUG PANEL MT W/SEAL
Datasheet
194290037 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Molex, LLC
Series MX150L 19429
Packaging Bulk
Connector Type Plug
Contact Type Male Pin
Number of Positions 8
Pitch 0.230" (5.84mm)
Number of Rows 2
Row Spacing 0.236" (6.00mm)
Mounting Panel Mount
Contact Termination Crimp
Fastening Type Locking Ramp
Color Black
Features Gasket, IP67
Note Contacts Not Included
Win Source Part Number 762231-194290037
Popularity Medium
Supply and Demand Status Limited
Family Name 19429
Introduction Date May 27, 2010
ECCN EAR99
Country of Origin Taiwan, United States of America
Halogen Free Not Compliant
Estimated EOL Date 2028
Ultra Librarian 3D Model Ultra Librarian 194290037 CAD Model

Description

The Molex 762231-194290037 is a limited supply electronic component with a medium popularity in the market and manufactured by Molex, LLC.

  • RoHS Compliant: Yes
  • Connector Type: Plug
  • Mounting: Panel
  • Pitch: 0.230" (5.84mm)
  • IP Rating: IP67
  • Color: Black
  • Contact Type: Male pin
  • Number of Positions: 8
  • Number of Rows: 2
  • Fastening Type: Locking ramp
  • Estimated EOL Date: 2028
