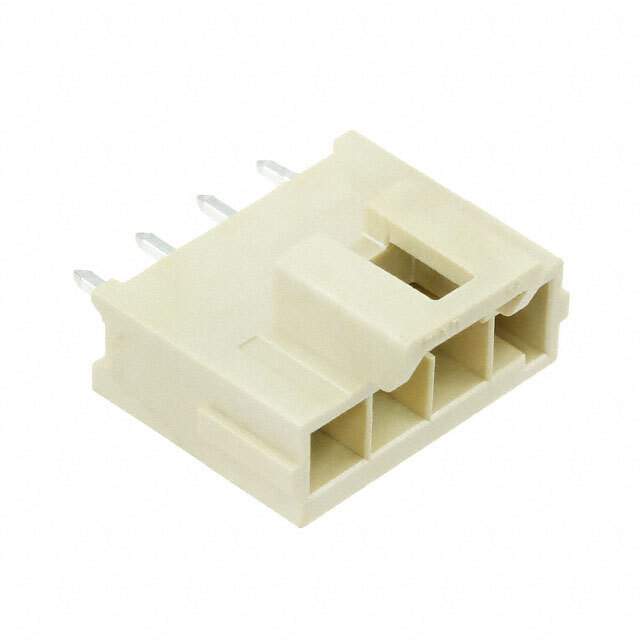

1722862104 Real Image
Same model may have multiple batches, images only for reference.

1722862104

Part No 1722862104
Manufacturer Molex, LLC
Catalog Rectangular Connectors
Description CONN HEADER VERT 4POS 3.5MM / Connector Header Through Hole 4 position 0.138" (3.50mm)
Datasheet
1722862104 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr Molex
Series Ultra-Fit 172286
Package Bulk
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.138" (3.50mm)
Number of Positions 4
Number of Rows 1
Number of Positions Loaded All
Style Board to Board or Cable
Shrouding Shrouded - 4 Wall
Mounting Type Through Hole
Termination Kinked Pin, Solder
Fastening Type Latch Holder
Contact Length - Post 0.126" (3.20mm)
Insulation Height 0.465" (11.80mm)
Contact Shape Square
Contact Finish - Mating Tin
Contact Finish Thickness - Mating 60.0µin (1.52µm)
Contact Finish - Post Tin
Contact Material Copper Alloy
Insulation Material Liquid Crystal Polymer (LCP)
Features Board Guide
Temperature Range - Operating -40°C ~ 105°C
Material Flammability Rating UL94 V-0
Insulation Color Natural
Voltage Rating 600V
Mated Stacking Heights 26.99mm
Contact Finish Thickness - Post 60.0µin (1.52µm)
Applications Automotive, General Purpose, Industrial, Lighting, Medical, Military, Telecommunications
Base Product Number 172286
Standard Package 1,400
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1337174-1722862104
Ultra Librarian 3D Model Ultra Librarian 1722862104 CAD Model

Description

The Molex Ultra-Fit 172286 is a male pin header connector that is part of the rectangular connector headers category.

  • Positions: 4
  • Board Guide: Yes
  • Application: Board-to-Board or Cable
  • Pitch: 0.138 inches
  • Packaging: Bulk
  • Standard Package: 1,400
  • MSL: 1 (unlimited)
  • HTSUS: 8536.69.4040
  • Applications: Automotive, Industrial, and Telecommunications
