Same model may have multiple batches, images only for reference.

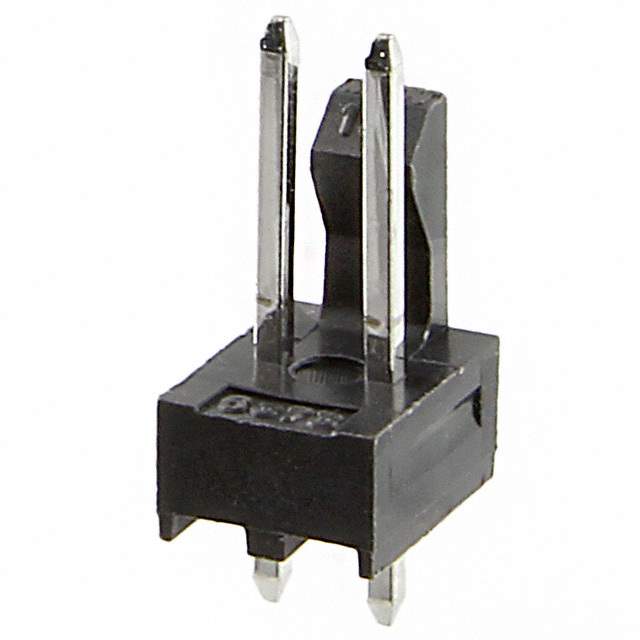

1718560002 Real Image
Same model may have multiple batches, images only for reference.

1718560002

Part No 1718560002
Manufacturer Molex, LLC
Catalog Rectangular Connectors
Description CONN HEADER VERT 2POS 2.54MM / Connector Header Through Hole 2 position 0.100" (2.54mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr Molex, LLC
Series KK254, 171856
Package Bulk
Product Status Active
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.100" (2.54mm)
Number of Positions 2
Number of Rows 1
Number of Positions Loaded All
Style Board to Board or Cable
Shrouding Shrouded - 1 Wall
Mounting Type Through Hole
Termination Solder
Fastening Type Friction Lock
Contact Length - Mating 0.293" (7.45mm)
Contact Length - Post 0.092" (2.34mm)
Overall Contact Length 0.510" (12.95mm)
Insulation Height 0.322" (8.18mm)
Contact Shape Square
Contact Finish - Mating Tin
Contact Finish Thickness - Mating 60.0µin (1.52µm)
Contact Finish - Post Tin
Contact Material Brass
Insulation Material Polyamide (PA), Nylon
Material Flammability Rating UL94 V-2
Insulation Color Black
Contact Finish Thickness - Post 60.0µin (1.52µm)
Applications Automotive, General Purpose, Medical, Telecommunications
Base Product Number 171856
Standard Package 6,000 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 845987-1718560002
Ultra Librarian 3D Model Ultra Librarian 1718560002 CAD Model

Description

The KK254, 171856 is a header male pin connector from Molex, LLC.

  • Positions: 2
  • Applications: Automotive, General Purpose, Medical, and Telecommunications
  • Connector Type: Header
  • Contact Type: Male Pin
  • Package: Bulk
  • Contact Finish: Tin
  • Insulation Material: Polyamide (PA), Nylon
  • Insulation Color: Black
  • Pitch: 0.100" (2.54mm)
  • Contact Finish Thickness: 60.0µin (1.52µm)
  • Mounting Type: Through-Hole
  • Shrouding: Shrouded - 1 Wall
  • Standard Package: 6,000 pcs
