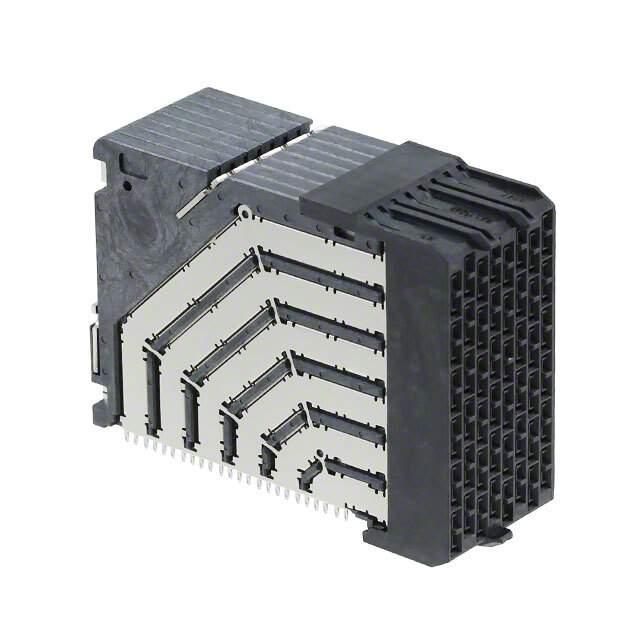

1714001038 Real Image
Same model may have multiple batches, images only for reference.

1714001038

Part No 1714001038
Manufacturer Molex, LLC
Catalog Backplane Connectors
Description Impel 92 Ohm, 6 Pair Right-Angle Daughtercard, 1.90mm Pitch, Unguided | CONN RCPT IMPEL PCB
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Molex
Packaging Tray
Connector Usage Daughtercard
Connector Type Receptacle, Female Sockets and Blade Sockets
Connector Style Impel
Number of Positions Loaded All
Pitch 0.075" (1.90mm)
Number of Rows 12
Number of Columns 8
Mounting Style Through Hole, Right Angle
Termination Press-Fit
Contact Layout, Typical 48 Differential Pairs
Features Shielded
Contact Finish Gold
Contact Finish Thickness 30.0μin (0.76μm)
Color Black
Material Flammability Rating UL94 V-0
Temperature Range - Operating -55°C ~ 85°C
Voltage Rating 150V
Manufacturer Pack Quantity 64
MSL Level 1 (Unlimited)
Win Source Part Number 1121466-1714001038
Manufacturer Homepage www.molex.com
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 1714001038 CAD Model

Description

The Molex impel connector is a 12-row, 8-column daughtercard connector with a pitch of 1.90mm. Its insulation material is made of UL94 V-0-rated material, and its contact finish is gold with a thickness of 30.0μin. The connector features a shielded functionality, making it a perfect fit for various applications.

  • Connector Type: Receptacle
  • Termination: Press-Fit
  • Voltage Rating: 150V
  • Current Rating: No specified current rating
