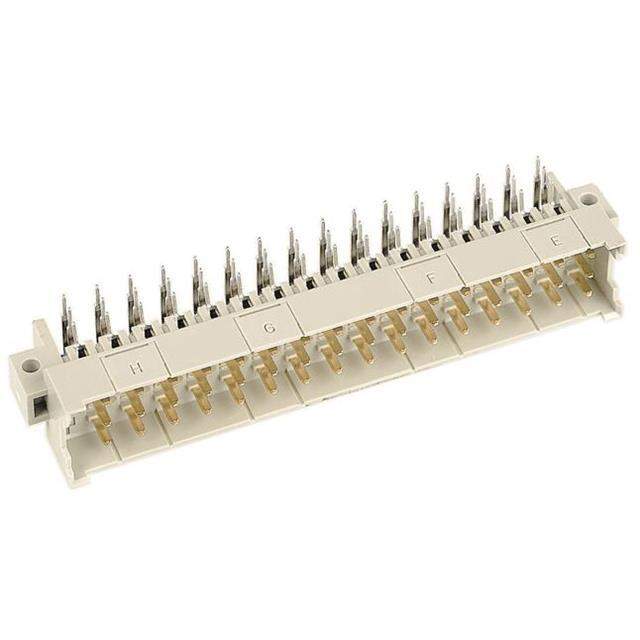

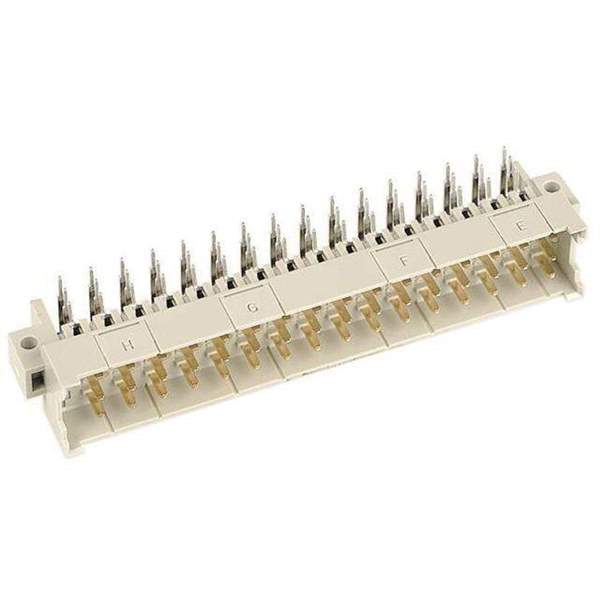

09061326901 Real Image
Same model may have multiple batches, images only for reference.

09061326901

Part No 09061326901
Manufacturer HARTING
Catalog Backplane Connectors
Description CONN DIN HDR 48POS PCB RA GOLD / 48 (Power) Position Din Connector Header, Male Pins Gold Through Hole, Right Angle
Datasheet
09061326901 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Backplane Connectors - DIN 41612
Mfr HARTING
Series DIN 41612
Package Bulk
Product Status Active
Connector Type Header, Male Pins
Number of Positions 48 (Power)
Number of Positions Loaded 32
Pitch 0.200" (5.08mm)
Number of Rows 3
Style F
Level, Class 2
Mounting Type Through Hole, Right Angle
Termination Solder
Contact Finish Gold
Contact Finish Thickness Flash
Material Flammability Rating UL94 V-0
Material - Insulation Thermoplastic, Glass Filled
Standard Package 20 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 908690-09061326901
Ultra Librarian 3D Model Ultra Librarian 09061326901 CAD Model

Description

The 908690-09061326901 is a DIN 41612 backplane connector from HARTING.

  • Connector Type: Backplane Connector
  • Series: DIN 41612
  • Number of Positions: 48
  • Gender: Male
  • Pitch: 0.200" (5.08mm)
  • Mounting Type: Through-Hole, Right-Angle
  • Insulation Material: Thermoplastic, Glass-Filled
  • Flammability Rating: UL94 V-0
  • Contact Finish: Gold with a flash thickness
  • Termination Type: Solder
  • Positions Loaded: 32
  • Number of Rows: 3
  • Current Rating: Not Specified
  • Style: F
  • Level/Class: 2
  • Package Type: Bulk
  • Quantity per Package: 20
  • Operating Temperature Range: Not Specified
  • ECCN: EAR99
  • REACH: Unaffected
  • MSL Level: 1 (Unlimited Floor Life)
