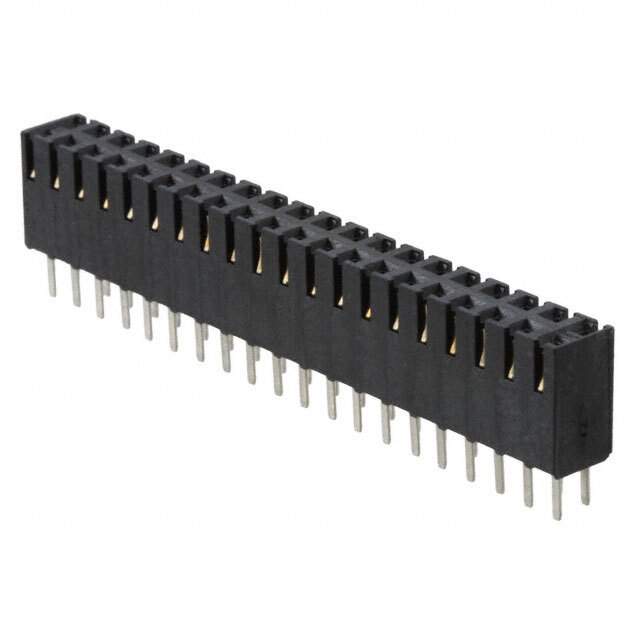

0015445840 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors>Headers, Receptacles, Female Sockets
Manufacturer Molex
Packaging Tray
Connector Type Receptacle
Contact Type Female Socket
Style Board to Board or Cable
Number of Positions 40
Number of Positions Loaded All
Pitch - Mating 0.100" (2.54mm)
Number of Rows 2
Row Spacing - Mating 0.100" (2.54mm)
Mounting Through Hole
Termination Solder
Fastening Type Push-Pull
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 15.0µin (0.38µm)
Insulation Color Black
Insulation Height 0.340" (8.64mm)
Contact Length - Post 0.120" (3.05mm)
Temperature Range - Operating -40°C ~ 125°C
Material Flammability Rating UL94 V-0
Contact Finish - Post Tin
Current Rating (Amps) 2.5A
Voltage Rating 500VAC
Applications Automotive, General Purpose, Lighting, Medical, Telecommunications
Insulation Material Liquid Crystal Polymer (LCP), Glass Filled
Contact Shape Square
Contact Material Phosphor Bronze
Contact Finish Thickness - Post 74.8µin (1.90µm)
Base Product Number 001544
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number 0015-44-5840,15-44-5840,15445840,A718500147,WM4455
Standard Package 1
Win Source Part Number 1332929-0015445840
Ultra Librarian 3D Model Ultra Librarian 0015445840 CAD Model

Description

The Molex 1332929-0015445840 is a rectangular connector that features a receptacle connector type.

  • Positions: 40 positions
  • Loaded: Loaded with all positions
  • Pitch-Mating: 0.100" (2.54mm)
  • Style: Designed for board-to-board or cable style mounting
  • Current Rating: 2.5A
  • Voltage Rating: 500VAC
  • Insulation Material: Liquid crystal polymer (LCP), glass-filled insulation material
  • Flammability Rating: UL94 V-0
  • Applications: Perfect for use in various electronic applications, including automotive, general purpose, lighting, medical, and telecommunications.
