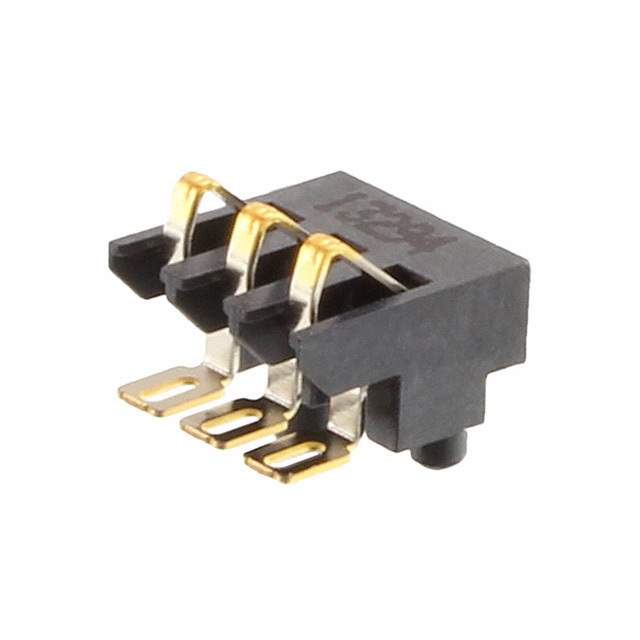

1050400001 Real Image
Same model may have multiple batches, images only for reference.

1050400001

Part No 1050400001
Manufacturer Molex, LLC
Catalog Contacts, Spring Loaded and Pressure
Description CONN SPRING BATTERY 3POS SMD / 3 Position Spring Battery Contact Connector Surface Mount
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors>Spring Loaded
Manufacturer Molex
Packaging Reel - TR
Connector Type Battery Contact
Number of Contacts 3
Pitch 0.079" (2.00mm)
Number of Rows 1
Mounting Surface Mount
Material Copper Alloy
Contact Finish Gold
Contact Finish Thickness 30.0µin (0.76µm)
Base Product Number 105040
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.8000
Other Part Number WM9695TR,1050400001-ND,105040-0001,WM9695DKR,WM9695CT
Standard Package 700
Win Source Part Number 1333000-1050400001
Ultra Librarian 3D Model Ultra Librarian 1050400001 CAD Model

Description

The Molex 1333000-1050400001 is a 3-contact spring-loaded battery connector designed for surface mount applications.

  • Pitch: 0.079" (2.00mm)
  • Contact Finish: Gold
  • Contact Material: Copper Alloy
  • Contact Finish Thickness: 30.0µin (0.76µm)
  • Application: Various Applications
  • ROHS3 Compliant: Yes
  • Packaging: Reel
