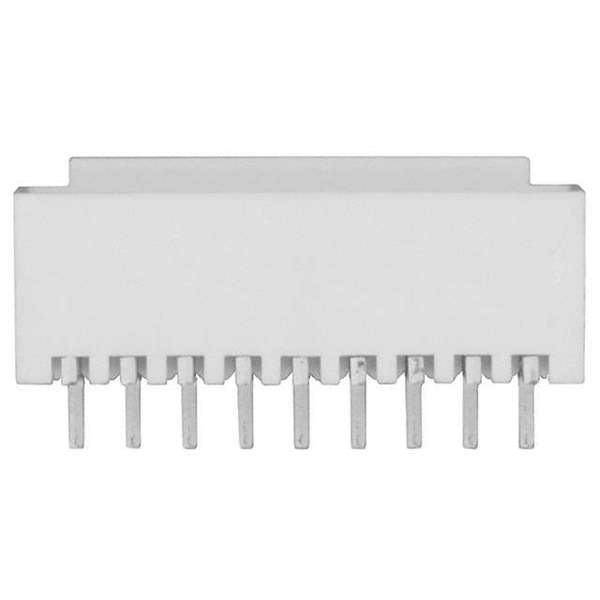

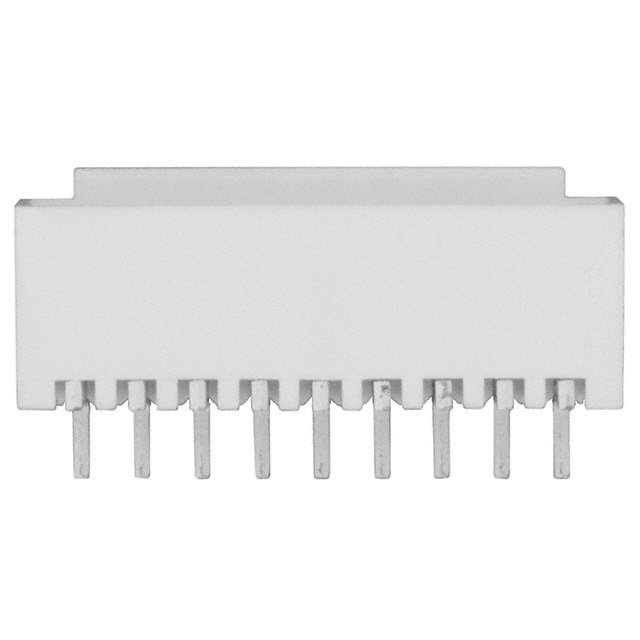

Same model may have multiple batches, images only for reference.

0874380943

Name: 0874380943
Brand: Molex, LLC
SKU: 1381212
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	0874380943
Manufacturer	Molex, LLC
Catalog	Rectangular Connectors
Description	CONN HEADER SMD R/A 9POS 1.5MM / Connector Header Surface Mount, Right Angle 9 position 0.059" (1.50mm)
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors>Headers, Male Pins
Mfr	Molex, LLC
Series	Pico-SPOX 87438
Package	Tape & Reel
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.059" (1.50mm)
Number of Positions	9
Number of Rows	1
Row Spacing - Mating	-
Number of Positions Loaded	All
Style	Board to Cable/Wire
Shrouding	Shrouded - 4 Wall
Mounting Type	Surface Mount, Right Angle
Termination	Solder
Fastening Type	Push-Pull
Contact Length - Mating	0.106" (2.70mm)
Contact Length - Post	-
Overall Contact Length	-
Insulation Height	0.175" (4.45mm)
Contact Shape	Square
Contact Finish - Mating	Tin
Contact Finish Thickness - Mating	100.0µin (2.54µm)
Contact Finish - Post	Tin
Contact Material	Brass Alloy
Insulation Material	Polyamide (PA), Nylon, Glass Filled
Features	-
Temperature Range - Operating	-55°C ~ 105°C
Ingress Protection	-
Material Flammability Rating	UL94 V-0
Insulation Color	Beige
Current Rating (Amps)	-
Voltage Rating	250V
Mated Stacking Heights	-
Contact Finish Thickness - Post	-
Applications	General Purpose, Medical
Base Product Number	87438
Moisture Sensitivity Level (MSL)	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Standard Package	1,000 pcs
Win Source Part Number	1381212-0874380943
Ultra Librarian 3D Model	Ultra Librarian 0874380943 CAD Model

Description

The Pico-SPOX 87438 is a male pin header connector designed for use in electronic devices.

Positions: 9
Termination: Solder
Contact Material: Brass Alloy
Voltage Rating: 250V
Applications: General Purpose, Medical
Fastening Type: Push-Pull
Shrouding: Shrouded, 4 Walls
Connection Style: Board to Cable/Wire
Pitch: 0.059" (1.50mm)
Contact Finish: Tin
Insulation Material: Polyamide (PA), Nylon, Glass-Filled
