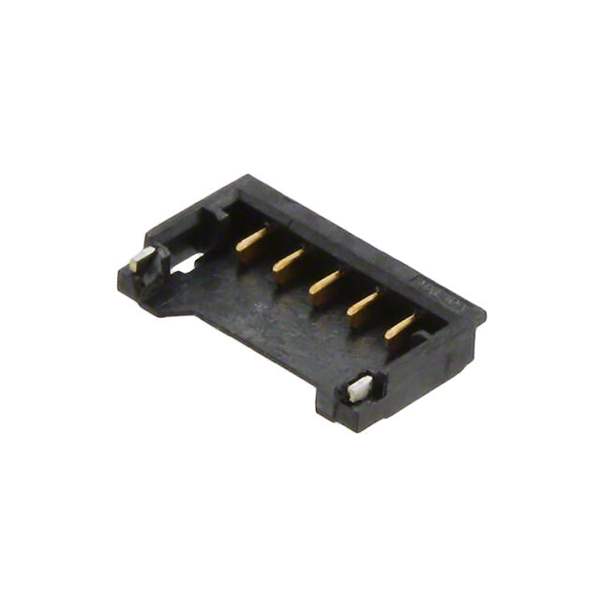

0781710005 Molex, LLC
Same model may have multiple batches, images only for reference.

0781710005

Part No 0781710005
Manufacturer Molex, LLC
Catalog Rectangular Connectors
Description Pico-EZmate Wire-to-Board Header, Vertical, Housing Height: 1.55mm | CONN HEADER SMD 5POS 1.2MM
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Molex
Packaging Reel
Connector Type Plug
Contact Type Tab
Pitch - Mating 0.047" (1.20mm)
Number of Positions 5
Number of Rows 1
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 3 Wall
Mounting Style SMD
Termination Solder
Fastening Type Friction Lock
Insulation Height 0.055" (1.40mm)
Contact Shape Rectangular
Contact Finish - Mating Gold
Contact Material Copper Alloy
Insulation Material Liquid Crystal Polymer (LCP)
Features Solder Retention
Temperature Range - Operating -25°C ~ 85°C
Material Flammability Rating UL94 V-0
Insulation Color Black
Voltage Rating 50V
Applications Automotive, General Purpose, Lighting, Telecommunications
Manufacturer Pack Quantity 1
MSL Level 1 (Unlimited)
Win Source Part Number 1120755-0781710005
Manufacturer Homepage www.molex.com
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian 0781710005 CAD Model

Description

The Molex Electronic Component is a connector/interconnect that is manufactured by Molex Molex.

  • Win Source Part Number: 1120755-0781710005
  • Package: Reel
  • Positions: Five
  • Mounting: SMD
  • Features: Solder retention
  • Connector Type: Plug
  • Contact Type: Tab
  • Positions Loaded: All
  • Rows: Single
  • Termination: Solder
  • Fastening Type: Friction lock
  • Contact Material: Copper alloy
  • Voltage Rating: 50V
  • Material Flammability Rating: UL94 V-0
  • Application: Automotive, general purpose, lighting, and telecommunications
  • Insulation Material: Liquid crystal polymer (LCP)
  • Style: Board to cable/wire
  • Pitch - Mating: 0.047" (1.20mm)
  • Contact Finish - Mating: Gold
  • Insulation Color: Black
  • Shrouding: Shrouded - 3 Wall
  • Insulation Height: 0.055" (1.40mm)
  • Contact Shape: Rectangular
  • Temperature Range - Operating: -25°C to 85°C
  • Supply and Demand Status: Balanced
  • Manufacturer Pack Quantity: 1
  • MSL Level: 1 (Unlimited)
