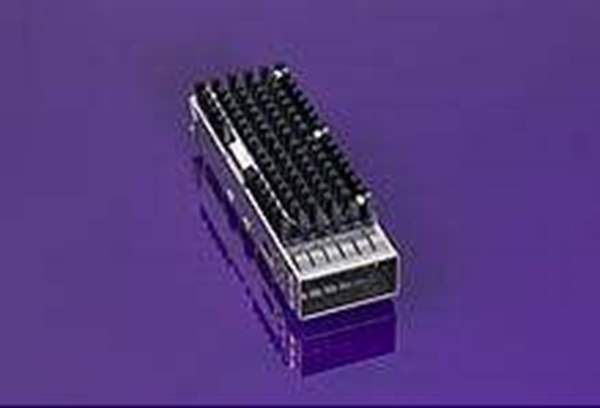

0747500040 Molex
Same model may have multiple batches, images only for reference.

0747500040

Part No 0747500040
Manufacturer Molex, LLC
Catalog Pluggable Connectors
Description QSFP HEATSINK W/ EMI FINGER CAGE
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number WS1206496-0747500040
Manufacturer Molex
Category Connectors, Interconnects- Pluggable Connectors -Pluggable Connector Assemblies
Series 74750
Package Bag
Product Status Obsolete
Connector Style Cage with Heat Sink
Connector Type QSFP+
Mounting Type Through Hole, Right Angle
Termination Press-Fit
Base Product Number 074750
Ultra Librarian 3D Model Ultra Librarian 0747500040 CAD Model

Description

Position QSFP+ Cage with Heat Sink Connector Press-Fit Through Hole, Right Angle
