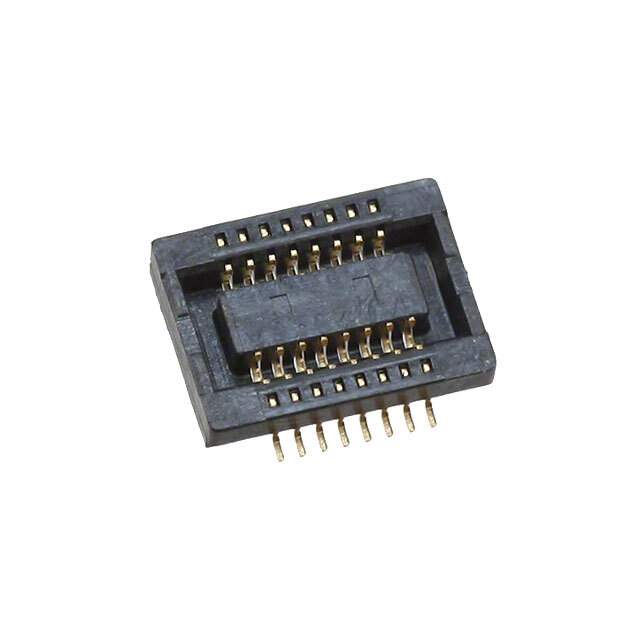

0547220164 Real Image
Same model may have multiple batches, images only for reference.

0547220164

Part No 0547220164
Manufacturer Molex, LLC
Catalog Rectangular Connectors
Description CONN RCPT 16POS SMD GOLD / 16 Position Connector Receptacle, Center Strip Contacts Surface Mount Gold
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
Mfr Molex, LLC
Series SlimStack 54722
Package Tape & Reel
Product Status Active
Connector Type Receptacle, Center Strip Contacts
Number of Positions 16
Pitch 0.020" (0.50mm)
Number of Rows 2
Mounting Type Surface Mount
Contact Finish Gold
Contact Finish Thickness 10.0µin (0.25µm)
Mated Stacking Heights 1.5mm
Height Above Board 0.045" (1.14mm)
Base Product Number 054722
Standard Package 3,000 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 849494-0547220164
Ultra Librarian 3D Model Ultra Librarian 0547220164 CAD Model

Description

The SlimStack 54722 is an array, edge type, mezzanine connector designed for board-to-board connections. Molex, LLC manufactures it.

  • Pitch: 0.020" (0.50mm)
  • Positions: 16
  • Connector Type: Receptacle with center strip contacts
  • Contact Finish: Gold contact finish with a thickness of 10.0µin (0.25µm)
  • Mounting Type: Surface mount
  • Mated Stacking Height: 1.5mm
  • Standard Package: 3,000 pcs
  • Product Status: Active
  • Suitable for: Various applications in electronics
