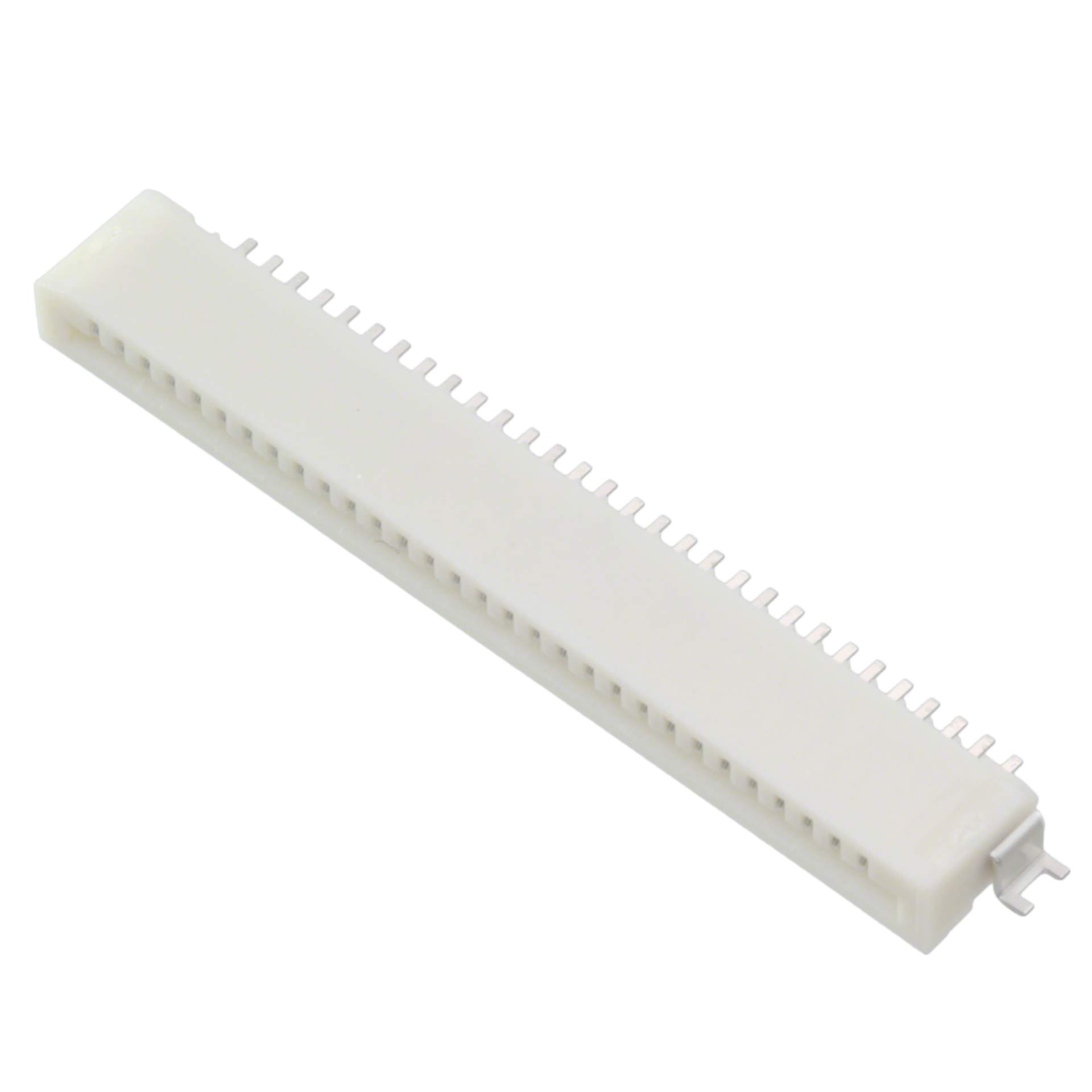

Part No 0527933070
Manufacturer Molex, LLC
Catalog FFC, FPC (FlatFlexible) Connectors
Description 1.00mm (.039") Pitch Right Angle, SMT, Non-ZIF, Top Contact Style, 30 Circuits, Leadfree | CONN FPC TOP 30POS 1.00MM R/A
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Molex
Packaging Reel
Flat Flex Type FPC
Mounting Style SMT, Right Angle
Connector/Contact Type Contacts, Top
Number of Positions 30
Pitch 0.039" (1.00mm)
Termination Solder
FFC, FCB Thickness 0.30mm
Height Above Board 0.122" (3.10mm)
Cable End Type Straight
Contact Material Phosphor Bronze
Contact Finish Tin Bismuth
Dielectric Material Polyphenylene Sulfide (PPS)
Features Solder Retention
Voltage Rating 50V
Temperature Range - Operating -20°C ~ 85°C
Material Flammability Rating UL94 V-0
Current Rating (Amps) 0.5A
Mating Cycles 10
Manufacturer Pack Quantity 1
MSL Level 1 (Unlimited)
Win Source Part Number 1120692-0527933070
Manufacturer Homepage www.molex.com
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 0527933070 CAD Model

Description

The Molex 1120692-0527933070 is a top contact, right-angle connector designed for use with flat flex cables.

  • Positions: 30
  • Pitch: 0.039" (1.00mm)
  • Mounting Type: Surface Mount
  • Height Above Board: 0.122" (3.10mm)
  • Locking Feature: Yes
  • Contact Material: Phosphor Bronze
  • Contact Finish: Tin Bismuth
  • FFC, FCB Thickness: 0.30mm
  • Voltage Rating: 50V
  • Flammability Rating: UL94 V-0
  • Dielectric Material: Polyphenylene Sulfide (PPS)
