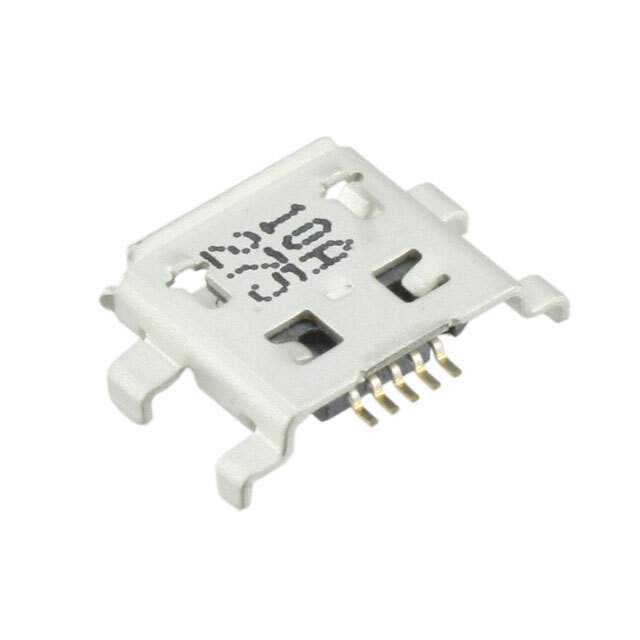

0476420001

Name: 0476420001
Brand: Molex, LLC
SKU: 853286
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	0476420001
Manufacturer	Molex, LLC
Catalog	USB, DVI, HDMI Connectors
Description	CONN RCPT MICRO USB B 5POS SMD / USB - micro B Receptacle Connector 5 Position Board Edge, Cutout; Surface Mount, Right Angle
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - USB, DVI, HDMI Connectors - USB, DVI, HDMI Connector Assemblies
Mfr	Molex, LLC
Series	47642
Package	Tape & Reel
Product Status	Active
Connector Type	USB - micro B
Number of Contacts	5
Gender	Receptacle
Mounting Type	Board Edge, Cutout; Surface Mount, Right Angle
Mounting Feature	Horizontal, Mid Mount
Termination	Solder
Features	Pick and Place, Solder Retention
Temperature Range - Operating	-20°C ~ 85°C
Number of Ports	1
Current Rating (Amps)	1A, 1.8A
Voltage - Rated	30VAC
Mating Cycles	10000
Shielding	Shielded
Contact Finish	Gold
Shell/Shielding Material	Steel, Stainless
Material Flammability Rating	UL94 V-0
Insulation Color	Black
Base Product Number	047642
Standard Package	1,500 pcs
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	853286-0476420001
Ultra Librarian 3D Model	Ultra Librarian 0476420001 CAD Model

Alternative Products

Description

The 47642 USB - micro B Connector Assembly is a versatile and durable connector for your USB connections.

Contacts: 5
Shielded: Yes
Pick and Place: Yes
Solder Retention: Yes
Type: Receptacle
Mounting: Horizontal, mid mount
Contact Finish: Gold
Voltage Rating: 30VAC
Temperature Range: -20°C to 85°C
