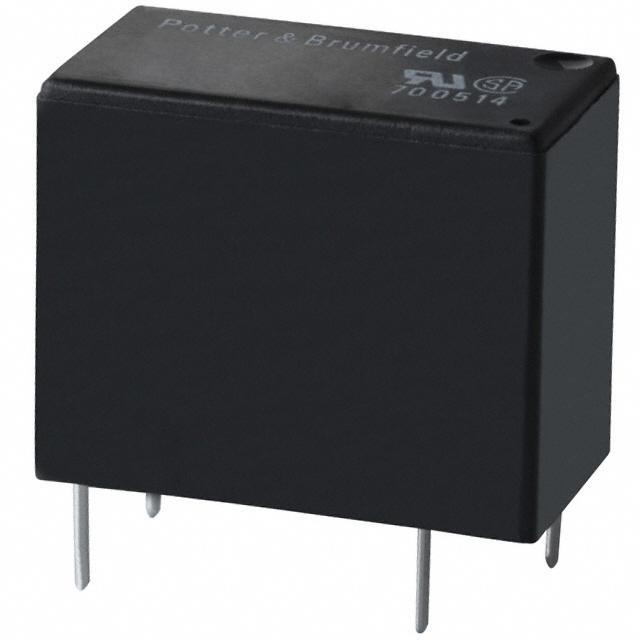

T77V1D10-12 TE Connectivity
Same model may have multiple batches, images only for reference.

T77V1D10-12

Part No T77V1D10-12
Manufacturer TE Connectivity
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE SPST 10A 12V
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Relays
Manufacturer TE Connectivity Potter & Brumfield Relays
Packaging Bulk
Status Active
Relay Type General Purpose
Coil Type Non Latching
Coil Current 37.5mA
Coil Voltage 12VDC
Contact Form SPST-NO (1 Form A)
Contact Rating (Current) 10A
Switching Voltage 250VAC, 30VDC - Max
Turn On Voltage (Max) 9 VDC
Turn Off Voltage (Min) 0.6 VDC
Operate Time 10ms
Release Time 4ms
Features Insulation - Class F, Sealed - Flux Protection
Mounting Through Hole
Termination Style PC Pin
Coil Power 450 mW
Coil Resistance 320 Ohms
Temperature Range - Operating -30°C to 85°C
Win Source Part Number 047692-T77V1D10-12
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian T77V1D10-12 CAD Model

Description

The TE Connectivity Potter & Brumfield Relay is a general-purpose relay with a single-pole, single-throw (SPST-NO) contact form.

  • Coil Voltage: 12VDC
  • Coil Resistance: 320 Ohms
  • Contact Rating: 10A
  • Mounting: Through-Hole
  • Insulation Class: F
  • Protection: Sealed flux protection
  • Turn On Voltage: 9VDC
  • Turn Off Voltage: 0.6VDC
  • Operate Time: 10ms
  • Release Time: 4ms
  • Application: Suitable for use in a wide range of applications, including industrial control systems, home appliances, and automotive electronics.
  • Temperature Range: -30°C to 85°C
