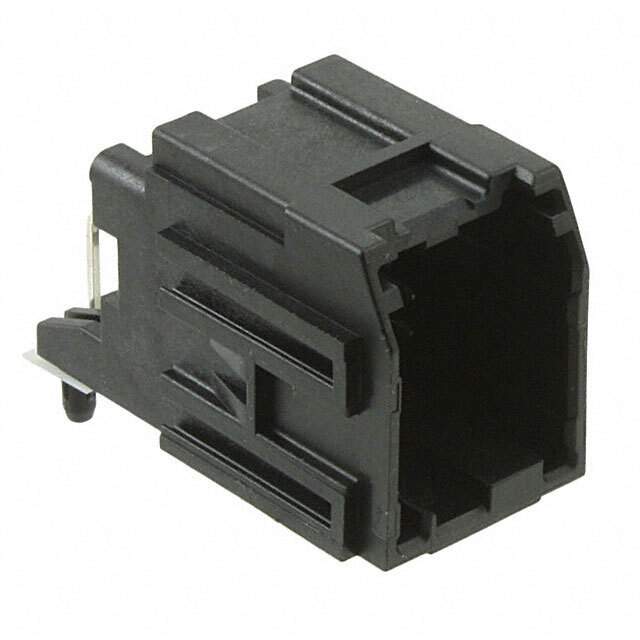

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors>Headers, Male Pins
Mfr Molex, LLC
Series Stac64 34691
Package Tray
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.100" (2.54mm)
Number of Positions 8
Number of Rows 2
Row Spacing - Mating 0.100" (2.54mm)
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Type Through Hole, Right Angle
Termination Solder
Fastening Type Latch Holder
Contact Length - Mating -
Contact Length - Post 0.119" (3.02mm)
Overall Contact Length -
Insulation Height 0.868" (22.05mm)
Contact Shape Square
Contact Finish - Mating Tin
Contact Finish Thickness - Mating -
Contact Finish - Post Tin
Contact Material Cartridge Brass
Insulation Material Syndiotactic Polystyrene (SPS), Glass Filled
Features Board Guide
Temperature Range - Operating -40°C ~ 105°C
Ingress Protection -
Material Flammability Rating -
Insulation Color Black
Current Rating (Amps) -
Voltage Rating -
Mated Stacking Heights -
Contact Finish Thickness - Post -
Applications Automotive
Base Product Number 034691
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Standard Package 1,008 pcs
Win Source Part Number 1380770-0346910080
Ultra Librarian 3D Model Ultra Librarian 0346910080 CAD Model

Description

The Stac64 34691 series header is a versatile connector designed for use in automotive applications.

  • Feature: Board Guide
  • Configuration: 8 Positions, Loaded
  • Rows: 2
  • Termination: Solder
  • Fastening: Latch Holder
  • Contact Material: Cartridge Brass
  • Temperature Range: -40°C to 105°C
  • Design: Shrouded 4-Wall
  • Pitch: 0.100" (2.54mm)
  • Contact Finish: Tin
  • Mounting: Through Hole, Right Angle
  • Package: 1,008 pcs
