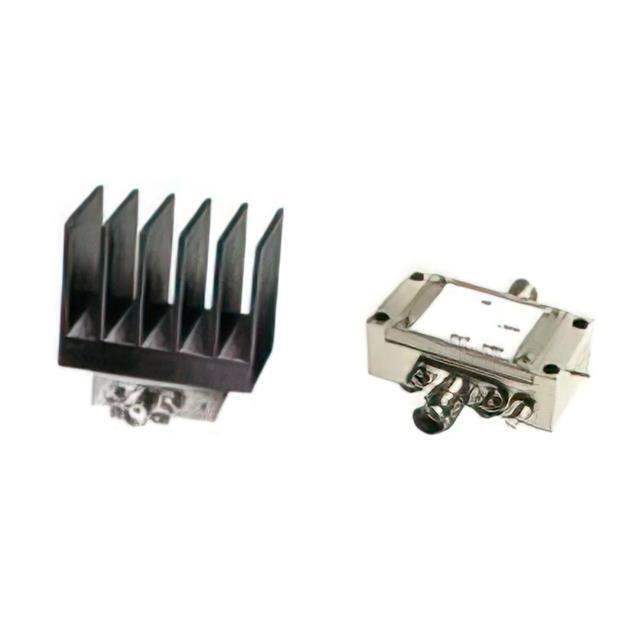

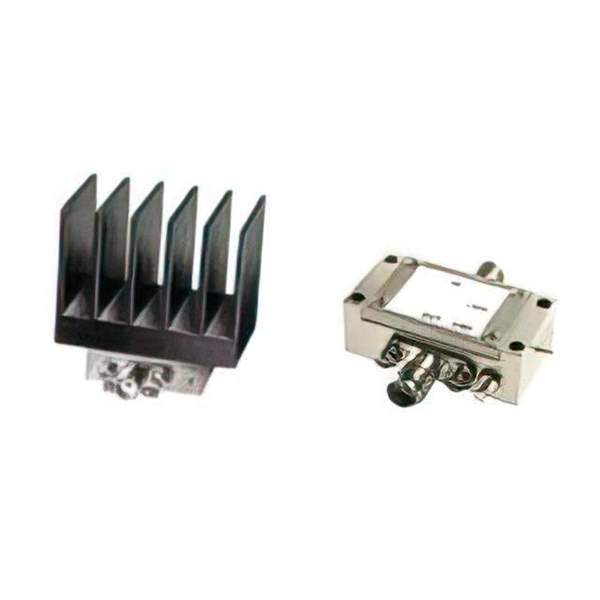

ZVA-183-S+ Mini-Circuits
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Package Tray
Product Status Active
Frequency 700MHz ~ 18GHz
P1dB 24dBm
Gain 26dB
Noise Figure 3dB
RF Type Radar
Voltage - Supply 12V
Current - Supply 400mA
Test Frequency 700MHz ~ 18GHz
Grade -
Mounting Type Chassis Mount
Package / Case Module
Ultra Librarian 3D Model Ultra Librarian ZVA-183-S+ CAD Model

Description

RF Amplifier IC Radar 700MHz ~ 18GHz
