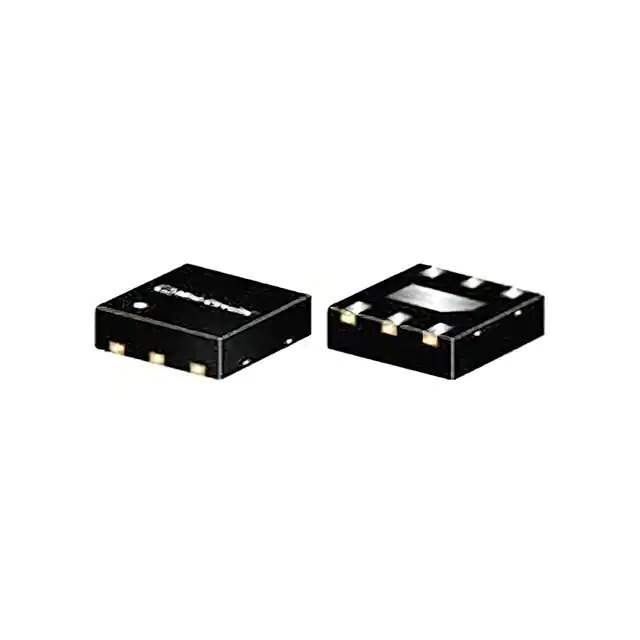

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category RF and Wireless - Attenuators
Mfr Mini-Circuits
Series YAT-A
Package Tape & Reel
Product Status Active
Attenuation Value 2dB
Frequency Range 0 Hz ~ 18 GHz
Power (Watts) 2W
Impedance 50 Ohms
Package / Case 6-VDFN Exposed Pad
Standard Package 2,000 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8548.00.0000
Win Source Part Number 939897-YAT-2A+
Ultra Librarian 3D Model Ultra Librarian YAT-2A+ CAD Model

Description

The 939897-YAT-2A+ is an RF and wireless attenuator with an impedance of 50 Ohms. 939897-YAT-2A+ manufactured by Mini-Circuits

  • Impedance: 50 Ohms
  • Power: 2W
  • Frequency Range: 0 Hz to 18 GHz
  • Attenuation: 2dB
  • Package: 6-VDFN exposed pad
  • MSL Level: 1 (Unlimited)
  • HTSUS code: 8548.00.0000
  • Series: YAT-A
  • Status: Active
