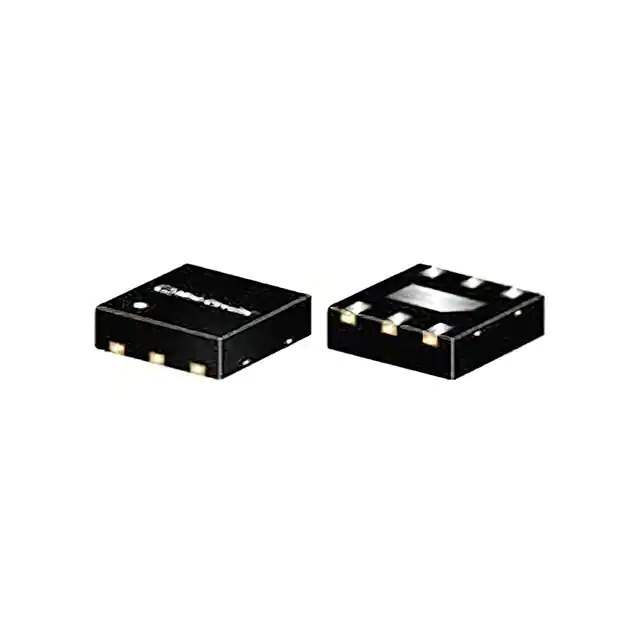

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category RF and Wireless - Attenuators
Mfr Mini-Circuits
Series YAT-A
Package Tape & Reel
Product Status Active
Attenuation Value 15dB
Frequency Range 0 Hz ~ 18 GHz
Power (Watts) 1.4W
Impedance 50 Ohms
Package / Case 6-VDFN Exposed Pad
Standard Package 2,000 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8533.21.0020
Win Source Part Number 904146-YAT-15A+
Ultra Librarian 3D Model Ultra Librarian YAT-15A+ CAD Model

Description

The 904146-YAT-15A+ is an attenuator designed for RF and wireless applications.

  • Frequency Range: 0 Hz to 18 GHz
  • Attenuation: 15dB
  • Impedance: 50 Ohms
  • Power: 1.4W
  • Package: 6-VDFN exposed pad
  • Manufacturer: Mini-Circuits
  • Product Status: Active
  • Standard Package: 2,000 pcs
