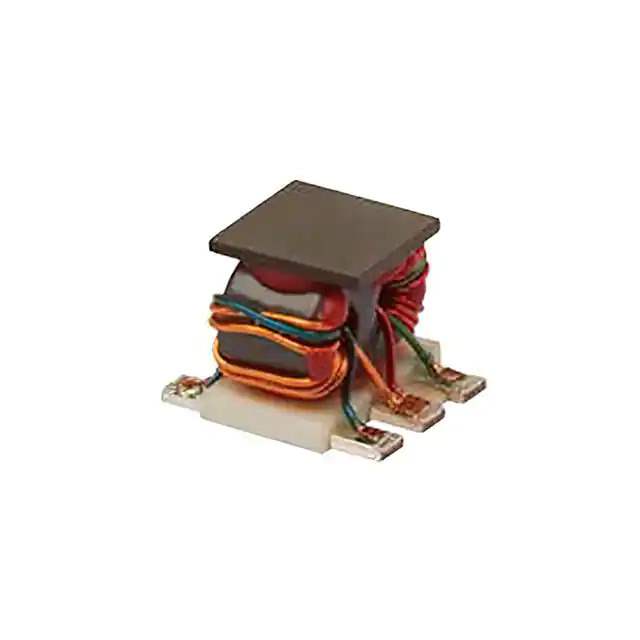

TC1-1T-75X+ Real Image
Same model may have multiple batches, images only for reference.

TC1-1T-75X+

Part No TC1-1T-75X+
Manufacturer Mini-Circuits
Catalog Balun
Description 1:1 CORE & WIRE TRANSFORMER, 5 -
Datasheet
TC1-1T-75X+ Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category RF and Wireless - Balun
Mfr Mini-Circuits
Package Tape & Reel
Product Status Active
Frequency Range 5MHz ~ 120MHz
Impedance - Unbalanced/Balanced 75 / 75Ohm
Phase Difference 3°
Insertion Loss (Max) 0.6dB
Return Loss (Min) 20dB
Package / Case 5-SMD Module
Mounting Type Surface Mount
Standard Package 2,000 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.31.4035
Win Source Part Number 839594-TC1-1T-75X+
Ultra Librarian 3D Model Ultra Librarian TC1-1T-75X+ CAD Model

Description

The 839594-TC1-1T-75X+ is a balun designed for RF and wireless applications.

  • Frequency Range: 5MHz to 120MHz
  • Balanced/Unbalanced Impedance: 75/75Ohm
  • Phase Difference: 3°
  • Insertion Loss (Max): 0.6dB
  • Return Loss (Min): 20dB
  • Package Type: 5-SMD Module
  • Standard Package: 2,000 pcs
