Same model may have multiple batches, images only for reference.

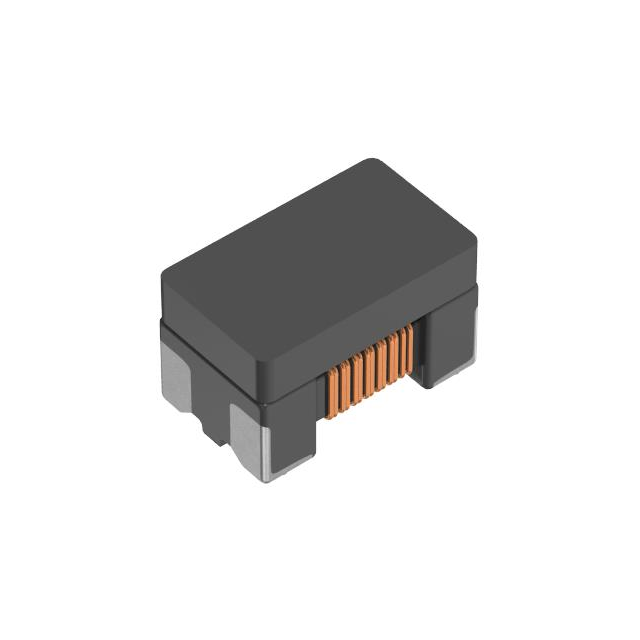

ATB2012V-75011-T01 Real Image
Same model may have multiple batches, images only for reference.

ATB2012V-75011-T01

Part No ATB2012V-75011-T01
Manufacturer TDK Corporation
Catalog Balun
Description BALAN TRANSFORMER, WOUND FERRITE / RF Balun 50MHz ~ 1GHz 75 / 75Ohm Horizontal, 4 PC Pad
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category RF/IF and RFID>Balun
Mfr TDK Corporation
Series ATB
Package Tape & Reel
Frequency Range 50MHz ~ 1GHz
Impedance - Unbalanced/Balanced 75 / 75Ohm
Insertion Loss (Max) 1.2dB
Package / Case Horizontal, 4 PC Pad
Mounting SMD (SMT)
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.31.2000
Other Names 445-ATB2012V-75011-T01CT,445-ATB2012V-75011-T01TR,445-ATB2012V-75011-T01DKR
Standard Package 2,000
Win Source Part Number 995598-ATB2012V-75011-T01
Ultra Librarian 3D Model Ultra Librarian ATB2012V-75011-T01 CAD Model

Description

The ATB2012V-75011-T01 is a balun designed by TDK Corporation.

  • Frequency Range: 50MHz to 1GHz
  • Impedance: 75/75 Ohm
  • Insertion Loss (Max): 1.2dB
  • Package: Horizontal, 4 PC Pad
  • Mounting Technology: SMD (SMT)
  • Series: ATB
  • Standard Package: 2,000
  • ECCN: EAR99
  • HTSUS: 8504.31.2000
  • MSL Level: 1 (unlimited)
