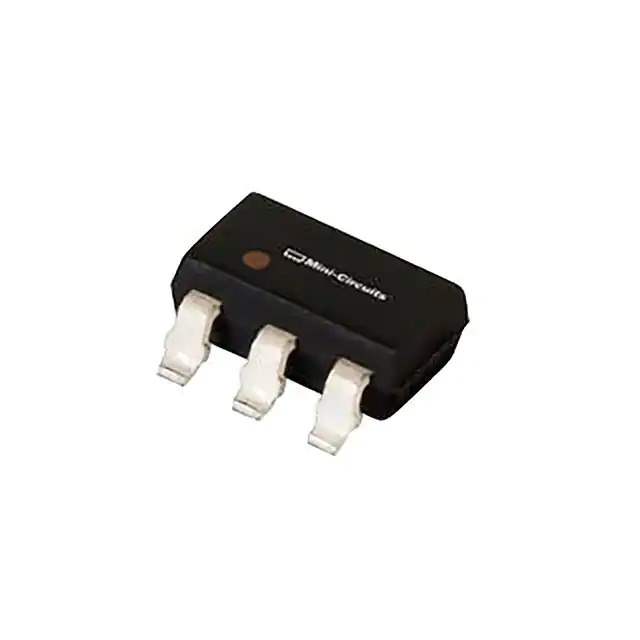

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category RF and Wireless - RF Power Dividers/Splitters
Mfr Mini-Circuits
Package Tape & Reel
Product Status Obsolete
Insertion Loss 0.4dB
Frequency 640 MHz ~ 1.1 GHz
Specifications Isolation (Min) 10dB, 1.25 VSWR (Max), 2° Imbalance (Max)
Size / Dimension 0.114" L x 0.059" W x 0.064" H (2.90mm x 1.51mm x 1.63mm)
Package / Case SOT-23-6
Standard Package 1,000 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8548.00.0000
Win Source Part Number 336818-SP-2C1+
Ultra Librarian 3D Model Ultra Librarian SP-2C1+ CAD Model

Description

The 336818-SP-2C1+ is an RF Power Divider/Splitter designed for RF and wireless applications.

  • Isolation: at least 10dB
  • Frequency Range: 640 MHz to 1.1 GHz
  • Package: SOT-23-6
  • Insertion Loss: 0.4dB
  • Manufacturer: Mini-Circuits
  • Product Status: obsolete
