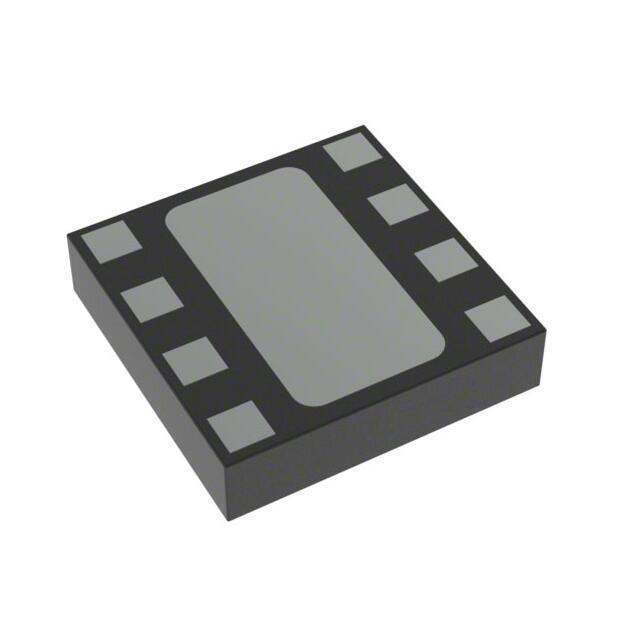

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Product Status Active
Frequency 40MHz ~ 3GHz
P1dB 19.4dBm
Gain 23.5dB
Noise Figure 3.7dB
RF Type CATV, SatCom
Voltage - Supply 4.8 V ~ 5.2 V
Current - Supply 69mA
Test Frequency 900MHz
Grade -
Mounting Type Surface Mount
Package / Case 8-TDFN Exposed Pad
Supplier Device Package 8-DFN (4.9x6)
Ultra Librarian 3D Model Ultra Librarian MGVA-63+ CAD Model

Description

MGVA-63+ is a dual matched wideband amplifier fabricated using advanced InGap HBT technology, offering high dynamic range (High IP3 and Low NF) for use in 50 and 75 ohm applications. This model has demonstrated high IP2 in wideband amplifier evaluation boards. Combining this performance with low noise figure makes it suitable for use in very high dynamic range amplifiers.
