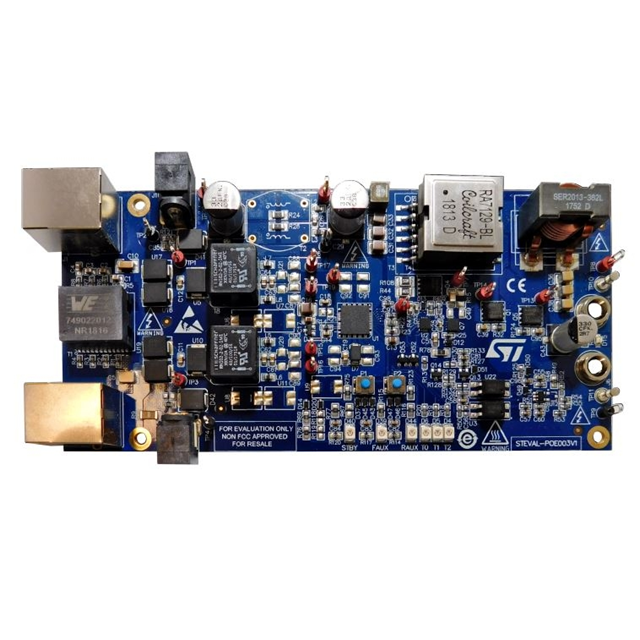

STEVAL-POE003V1 Power over Ethernet PD Interface

The STEVAL-POE003V1 from STMicroelectronics is a state-of-the-art Power over Ethernet (PoE) Powered Device (PD) interface that enables the reception of both data and power through a single Ethernet cable, in accordance with the IEEE 802.3af and IEEE 802.3at standards. This innovative module is designed to be integrated into applications such as IP cameras, VoIP phones, wireless access points, and IoT devices, where minimizing cabling complexity and cost is essential.

Equipped with an advanced PoE-PD interface controller, the STEVAL-POE003V1 ensures seamless power management and allocation. The device supports both end-span and mid-span power supply configurations, making it highly versatile for different network architectures. The module is capable of handling power up to 30 Watts, allowing it to power a wide range of devices.

One of the key features of the STEVAL-POE003V1 is its compact design, which facilitates easy integration into existing and new designs without requiring significant space. The module includes an integrated switching regulator that operates in a wide input voltage range, providing a reliable and efficient power supply to the connected PD.

For developers and engineers, the STEVAL-POE003V1 comes with comprehensive documentation and design resources, including schematics, layout suggestions, and application notes. These resources help to streamline the design process and reduce time-to-market for PoE-enabled products.

The module also boasts robust protection features, such as over-temperature protection, under-voltage lockout, and over-current protection, ensuring reliable operation under various conditions. The built-in thermal management system ensures that the device operates within safe temperature ranges, further enhancing its reliability.

In summary, the STEVAL-POE003V1 is a powerful and flexible solution for any application requiring a high-performance PoE interface. Its ease of use, efficiency, and comprehensive support make it an ideal choice for developers looking to incorporate PoE technology into their products.
