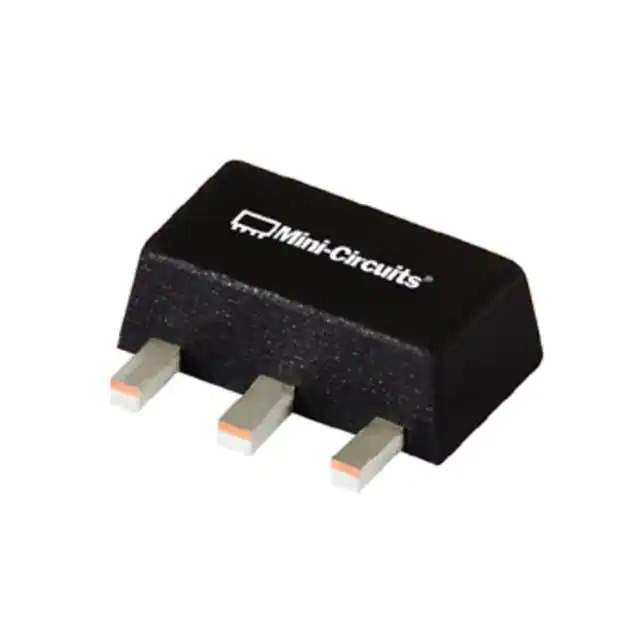

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category RF and Wireless - RF Amplifiers
Mfr Mini-Circuits
Package Tape & Reel
Product Status Active
Frequency 10MHz ~ 9GHz
P1dB 16.3dBm
Gain 15.2dB
Noise Figure 5.3dB
RF Type LTE, MMDS, Wireless LAN
Voltage - Supply 4.8V ~ 5.2V
Current - Supply 52mA
Test Frequency 850MHz
Mounting Type Surface Mount
Package / Case TO-243AA
Supplier Device Package SOT-89
Standard Package 1,000 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8542.33.0001
Win Source Part Number 824475-GVA-93+
Ultra Librarian 3D Model Ultra Librarian GVA-93+ CAD Model

Description

The 824475-GVA-93+ is an RF amplifier designed by Mini-Circuits. It is a versatile amplifier that operates in a wide frequency range from 10MHz to 9GHz, making it suitable for various applications such as LTE, MMDS, and wireless LAN systems.

  • Manufacturer: Mini-Circuits
  • Frequency Range: 10MHz to 9GHz
  • Gain: 15.2dB
  • Noise Figure: 5.3dB
  • Supply Voltage: 4.8V to 5.2V
  • Current Consumption: 52mA
  • Package: TO-243AA
  • Product Status: Active
  • Standard Package: 1,000 pcs
