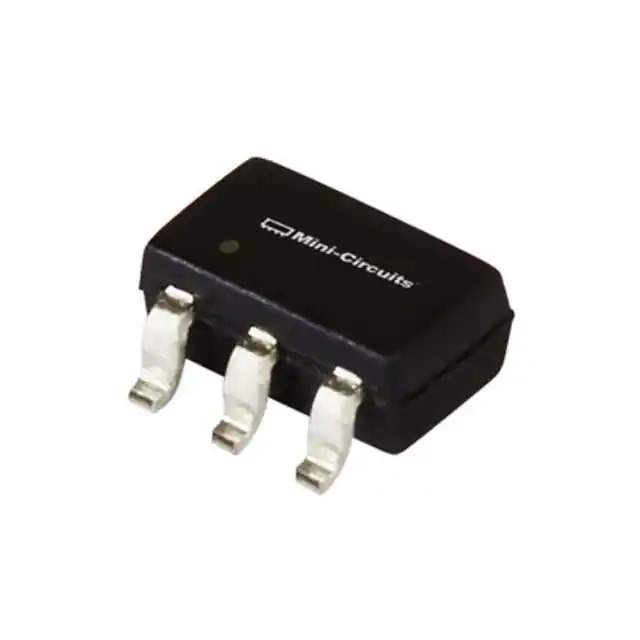

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category RF and Wireless - RF Amplifiers
Mfr Mini-Circuits
Package Tape & Reel
Product Status Active
Frequency 50MHz ~ 4GHz
P1dB 16.8dBm
Gain 9.6dB
Noise Figure 1.5dB
RF Type Cellular, GSM, ISM, LTE, WCDMA, WiMAX, WLAN
Voltage - Supply 3V
Current - Supply 30mA
Test Frequency 1GHz
Mounting Type Surface Mount
Package / Case 6-VSSOP, SC-88, SOT-363
Supplier Device Package SC-70-6
Standard Package 2,000 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8542.33.0001
Win Source Part Number 281577-PSA-5451+
Ultra Librarian 3D Model Ultra Librarian PSA-5451+ CAD Model

Description

The 281577-PSA-5451+ is an RF Amplifier designed for use in RF and wireless applications.

  • Test Frequency: 1GHz
  • General Frequency Range: 50MHz to 4GHz
  • Gain: 9.6dB
  • Noise Figure: 1.5dB
  • Supply Voltage: 3V
  • Current Supply: 30mA
  • Package: 6-VSSOP, SC-88, SOT-363
  • Mounting: surface mount
  • Manufacturer: Mini-Circuits
  • Status: active
