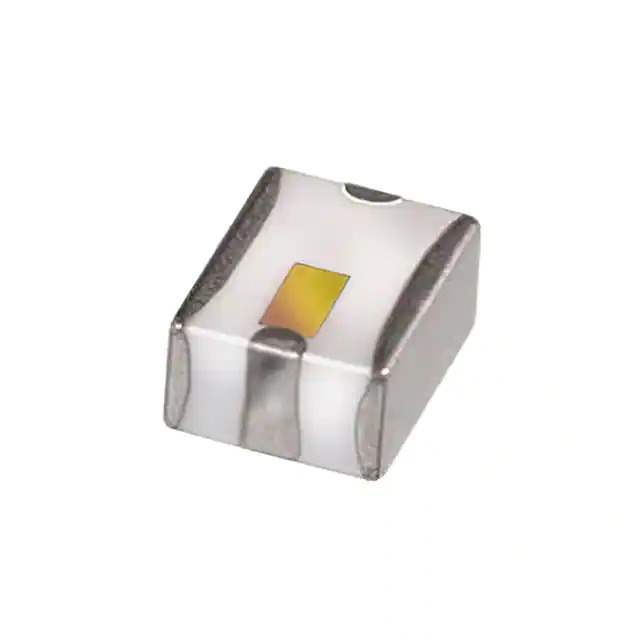

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Filters - Ceramic Filters
Mfr Mini-Circuits
Package Tape & Reel
Product Status Active
Frequency 5.27GHz Center
Impedance 50Ohm
Bandwidth 2.46 GHz
Insertion Loss 4dB
Filter Type Band Pass
Mounting Type Surface Mount
Package / Case 1210 (3225 Metric), 4 PC Pad
Size / Dimension 0.126" L x 0.098" W (3.20mm x 2.49mm)
Height (Max) 0.059" (1.50mm)
Standard Package 2,000 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8548.00.0000
Win Source Part Number 819284-BFCV-5270+
Ultra Librarian 3D Model Ultra Librarian BFCV-5270+ CAD Model

Description

The 819284-BFCV-5270+ is a ceramic filter designed for use in electronic devices.

  • Size: 0.126" L x 0.098" W (3.20mm x 2.49mm)
  • Impedance: 50Ohm
  • Frequency: 5.27GHz center
  • Insertion Loss: 4dB
  • Bandwidth: 2.46 GHz
  • Package: Tape and reel
  • Size: 1210 (3225 Metric)
  • Pads: 4 PC pads
  • Manufacturer: Mini-Circuits
