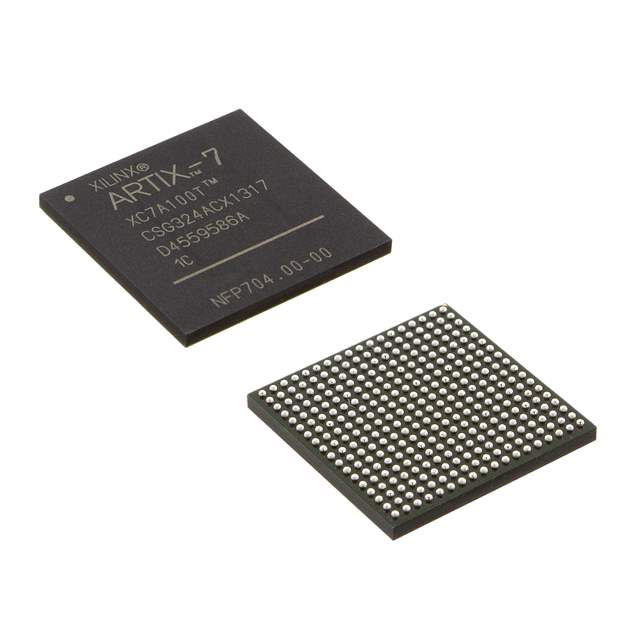

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Integrated Circuits (ICs)>Embedded - FPGAs (Field Programmable Gate Array)
Mfr AMD Xilinx
Series Artix-7
Package Tray
Number of LABs/CLBs 7925
Number of Logic Elements/Cells 101440
Total RAM Bits 4976640
Number of I/O 210
Voltage - Supply 0.95V ~ 1.05V
Mounting SMD (SMT)
Temperature Range - Operating 0°C ~ 100°C (TJ)
Package / Case 324-LFBGA, CSPBGA
Supplier Device Package 324-CSPBGA (15x15)
Base Product Number XC7A100
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN 3A991D
HTSUS 8542.39.0001
Standard Package 126
Win Source Part Number 986851-XC7A100T-L2CSG324E
Ultra Librarian 3D Model Ultra Librarian XC7A100T-L2CSG324E CAD Model

Description

The XC7A100T-L2CSG324E is an Artix-7 FPGA from AMD Xilinx.

  • Manufacturer: AMD Xilinx
  • Series: Artix-7
  • Package: 324-LFBGA, CSPBGA
  • I/Os: 210
  • Voltage Supply: 0.95V to 1.05V
  • Temperature Range: 0°C to 100°C
  • LABs/CLBs: 7925
  • Logic Elements/Cells: 101440
  • Total RAM Bits: 4976640
