Same model may have multiple batches, images only for reference.

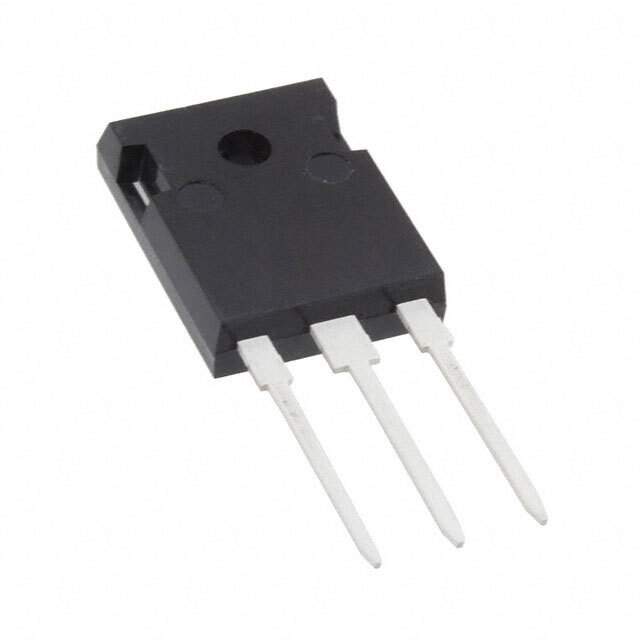

MBR40100PTE3/TU Real Image
Same model may have multiple batches, images only for reference.

MBR40100PTE3/TU

Part No MBR40100PTE3/TU
Manufacturer Microsemi Corporation
Catalog Diodes, Rectifiers - Arrays
Description DIODE SCHOTTKY 40A 100V TO-247AD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Microsemi Corporation
Packaging Tube/Rail
Status Active
Diode Configuration 1 Pair Common Cathode
Diode Type Schottky
Voltage - DC Reverse (Vr) (Max) 100V
Current - Average Rectified (Io) (per Diode) 40A
Speed(Frequency) Standard Recovery >500ns, > 200mA (Io)
Operating Temperature - Junction 175°C (Max)
Mounting Through Hole
Case / Package TO-247
Win Source Part Number 1072499-MBR40100PTE3/TU
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian MBR40100PTE3/TU CAD Model

Description

The Microsemi Corporation 1072499-MBR40100PTE3/TU is a pair of common cathode Schottky diodes that can handle a maximum DC reverse voltage of 100V. It is mounted using through-hole technology and is packaged in a TO-247 case. The average rectified current per diode is 40A, and the speed (frequency) is standard recovery >500ns, >200mA (Io). The operating temperature range of this diode is up to 175°C, and its popularity is medium.
