Same model may have multiple batches, images only for reference.

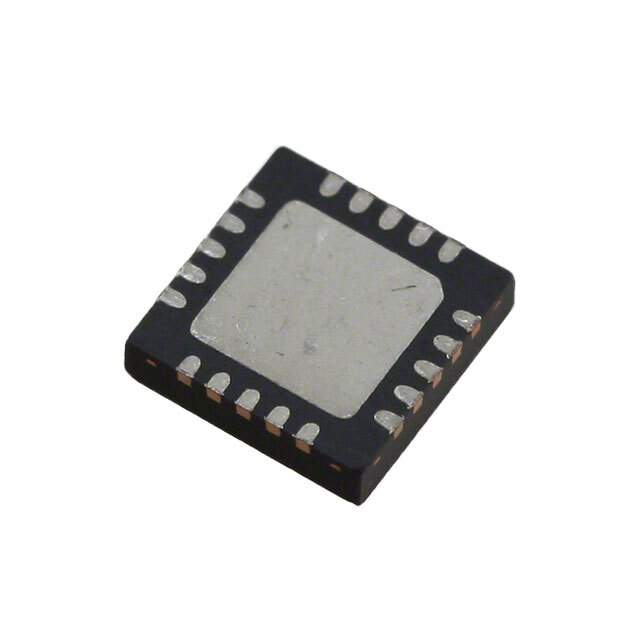

LX2201CLQ Real Image
Same model may have multiple batches, images only for reference.

LX2201CLQ

Part No LX2201CLQ
Manufacturer Microsemi Corporation
Catalog PMIC - Battery Chargers
Description IC BATT CHG LI-ION 1CELL 20MLPQ  /  Charger IC Lithium Ion 20-MLPQ (4x4)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs)>PMIC - Battery Chargers
Mfr Microsemi Corporation
Package Tube
Product Status Obsolete
Battery Chemistry Lithium Ion
Number of Cells 1
Current - Charging Constant - Programmable
Programmable Features Current
Charge Current - Max 2A
Battery Pack Voltage 4.2V
Voltage - Supply (Max) 6V
Interface USB
Temperature Range - Operating 0°C ~ 70°C (TA)
Mounting SMD (SMT)
Package / Case 20-TFQFN Exposed Pad
Supplier Device Package 20-MLPQ (4x4)
Base Product Number LX2201
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Other Names 150-LX2201CLQ,LX2201CLQ-ND
Standard Package 1
Win Source Part Number 1137367-LX2201CLQ
Ultra Librarian 3D Model Ultra Librarian LX2201CLQ CAD Model

Description

The Microsemi Corporation LX2201CLQ is a PMIC - battery charger integrated circuit (IC) that operates @ a maximum voltage of 6V.

  • Maximum Voltage: 6V
  • Charging Current: 2A
  • Battery Chemistry: Lithium-Ion
  • Package: 20-TFQFN Exposed Pad
  • Temperature Range: 0°C to 70°C (TA)
  • Status: Obsolete
  • ECCN: EAR99
  • MSL Level: 1 (unlimited)
  • REACH: Unaffected
