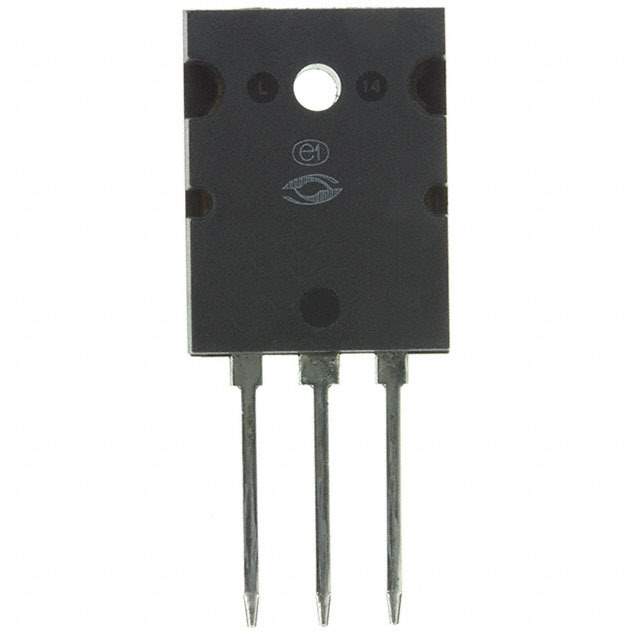

APT75F50L Real Image
Same model may have multiple batches, images only for reference.

APT75F50L

Part No APT75F50L
Manufacturer Microsemi Corporation
Catalog Transistors - FETs, MOSFETs - RF
Description N-Channel FREDFET
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Microsemi Corporation
Series POWER MOS 8
Packaging Tube
Channel Type Type N
Technology MOSFET
Drain Source Voltage 500V
Current - Continuous Drain (Id) @ 25°C 75A (Tc)
Drive Voltage (Max Rds On, Min Rds On) 10V
Vgs(th) (Maximum) @ Id 5V @ 2.5mA
Gate Charge (Qg) (Maximum) @ Vgs 290nC @ 10V
Input Capacitance (Ciss) (Maximum) @ Vds 11600pF @ 25V
Vgs (Maximum) ±30V
Power Dissipation (Maximum) 1040W (Tc)
Rds On (Maximum) @ Id, Vgs 75 mOhm @ 37A, 10V
Operating Temperature Range -55°C ~ 150°C (TJ)
Mounting Style Through Hole
Manufacturer Package TO-264 [L]
Package TO-264-3, TO-264AA
Win Source Part Number 1146889-APT75F50L
Manufacturer Homepage www.microsemi.com
Popularity Medium
Supply and Demand Status Limited
Quantity per package 1
Family Name APT75F50L
Introduction Date January 09, 2006
ECCN EAR99
Estimated EOL Date 2024
Ultra Librarian 3D Model Ultra Librarian APT75F50L CAD Model

Description

The Microsemi Corporation APT75F50L is a MOSFET technology-based product that is designed for use in discrete semiconductor applications.

  • Package: TO-264-3, TO-264AA
  • Continuous Drain Current: 75A (Tc) @ 25°C
  • Drain-Source Voltage: 500V
  • Gate-Source Voltage (Threshold Maximum): 5V @ 2.5mA
  • Gate Charge (Maximum): 290nC @ 10V
  • Input Capacitance (Maximum): 11600pF @ 25V
  • Power Dissipation (Maximum): 1040W (Tc)
  • Rds On (Maximum): 75 mOhm @ 37A, 10V
  • Package: TO-264 [L]
  • Channel Type: N
