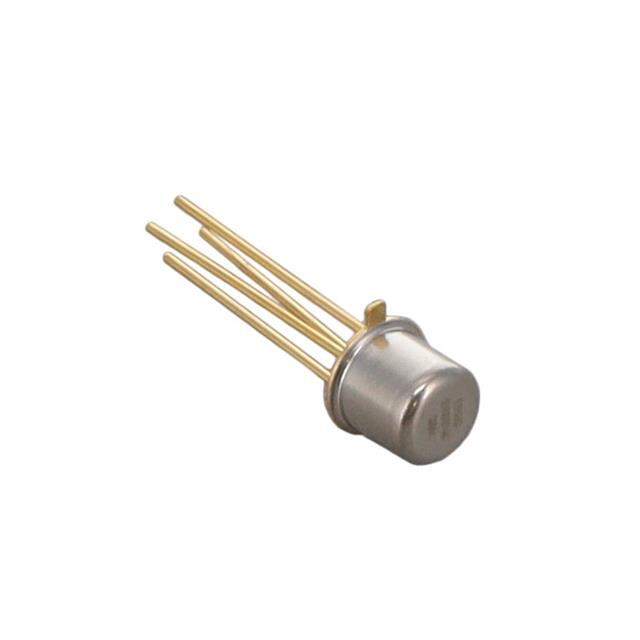

2N3823 Real Image
Same model may have multiple batches, images only for reference.

2N3823

Part No 2N3823
Manufacturer Microsemi Corporation
Catalog JFETs (Junction Field Effect)
Description N-CHANNEL JUNCTION FIELD EFFECT TRANSISTOR | N CHANNEL JFET
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Microsemi Corporation
Packaging Bulk
Transistor Polarity N-Channel
Voltage - Breakdown (V(BR)GSS) 30V
Vds - Drain-Source Breakdown Voltage 30V
Current - Drain (Idss) at Vds (Vgs=0) 20mA at 15V
Voltage - Cutoff (VGS off) at Id 8V at 500pA
Input Capacitance (Ciss) (Maximum) at Vds 6pF at 15V
Maximum Power 300mW
Temperature Range - Operating -55°C ~ 200°C
Mounting Style Through Hole
Manufacturer Package TO-206AF, TO-72-4 Metal Can
Supplier Device Package TO-72
Manufacturer Pack Quantity 1
MSL Level 1 (Unlimited)
Win Source Part Number 1123795-2N3823
Manufacturer Homepage www.microelectr.com.hk
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 2N3823 CAD Model

Description

The Microsemi Corporation 2N3823 is a N-channel transistor with a voltage breakdown of 30V and a maximum power of 300mW. Bold the product name (e.g., 2N3823) and manufacturer (e.g., Microsemi Corporation).

  • Channel: N-channel
  • Voltage Breakdown: 30V
  • Maximum Power: 300mW
  • Mounting Style: Through Hole
  • Supplier Device Package: TO-72
  • Input Capacitance: 6pF @ 15V
  • Current Drain: 20mA @ 15V
  • Cutoff Voltage: 8V @ 500pA
  • Operating Temperature Range: -55°C to 200°C
  • Availability: in the open market
