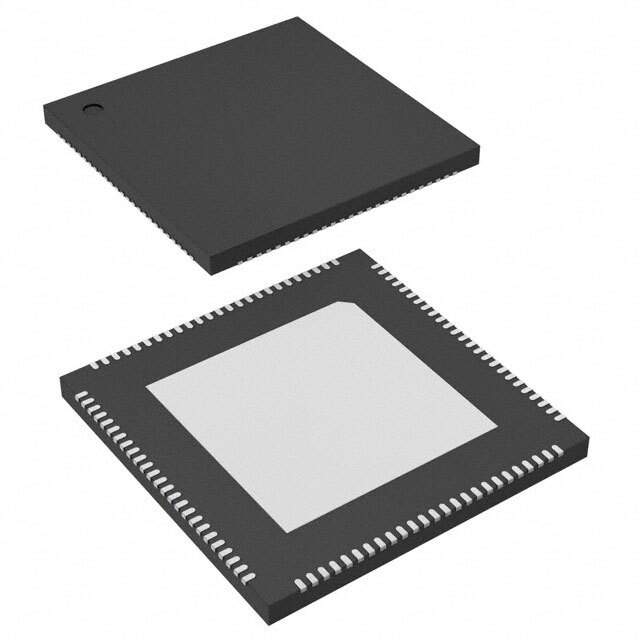

The USB5806/KD is a state-of-the-art USB 2.0 hub controller from Microchip Technology, a leading provider of smart, connected, and secure embedded control solutions. This advanced hub controller is designed to enable multiple device connections with high efficiency and integrated features that streamline the implementation process for designers and engineers.

Key Features

• Multi-Port Connectivity: The USB5806/KD offers six downstream ports for a broad range of USB connectivity options, making it ideal for applications requiring numerous USB connections.
• High-Speed Interface: With support for high-speed USB 2.0 data transfer rates of up to 480 Mbps, this hub controller ensures fast and reliable communication between connected devices.
• FlexConnect Technology: Microchip's FlexConnect technology allows a downstream port to become an upstream port, providing flexibility in USB port roles and simplifying the design of shared USB connections.
• Charge Detection: It supports battery charging specifications, including dedicated charging port (DCP) and charging downstream port (CDP), facilitating faster charging times for connected devices.
• Advanced Protection: The USB5806/KD includes overcurrent protection and ESD protection circuits, safeguarding connected devices from potential electrical damage.

Applications

The versatility of the USB5806/KD makes it an excellent choice for a wide range of applications, including:

• Desktop and Laptop PCs
• Docking Stations
• Monitors with USB Hub Functionality
• Multi-function Printers
• Consumer Electronics
• Automotive Infotainment Systems

Technical Specifications

The USB5806/KD is equipped with features that ensure seamless integration and operation:

• Compliant with USB 2.0 Specification
• Support for Link Power Management (LPM)
• PHY Boost Technology for improved signal integrity
• Configurable Vendor ID (VID), Product ID (PID), and Device Serial Number
• Support for I²C, SPI, and GPIO interfaces

In summary, the USB5806/KD hub controller is an ideal solution for expanding USB capabilities in various electronic devices, offering robust connectivity, fast data transfer, and advanced protection features to meet the needs of modern technology applications.
