Product Overview: TC4427COA from Microchip Technology

The TC4427COA is a robust, high-speed dual-channel MOSFET driver manufactured by Microchip Technology, designed to translate low-power input signals into high-current outputs at voltages up to 18V. This driver is specifically engineered to drive capacitive loads with excellent speed and performance, making it an ideal choice for a wide range of applications, including but not limited to motor controls, line drivers, and switching power supplies.

Key Features

• Output Configuration: The TC4427COA offers two independent output channels, capable of delivering peak currents of up to 1.5A per channel.
• Input Supply Voltage Range: This driver operates on a supply voltage ranging from 4.5V to 18V, providing flexibility for various system voltages.
• High-Speed Operation: With its fast rise and fall times of 25ns and 20ns respectively, the TC4427COA ensures swift and efficient switching, reducing power losses and improving overall system efficiency.
• Latch-Up Protection: The device includes latch-up protection up to 1.5A, ensuring stability and reliability under extreme conditions.
• Input Logic Compatibility: The TC4427COA is compatible with standard TTL and CMOS levels, making it easy to interface with microcontrollers and other logic devices.

Applications

The versatility of the TC4427COA makes it suitable for a variety of applications, including:

• DC to DC converters
• Pulse generators
• Power MOSFET gate drivers
• Motor controllers
• Class D switching amplifiers

Package and Quality

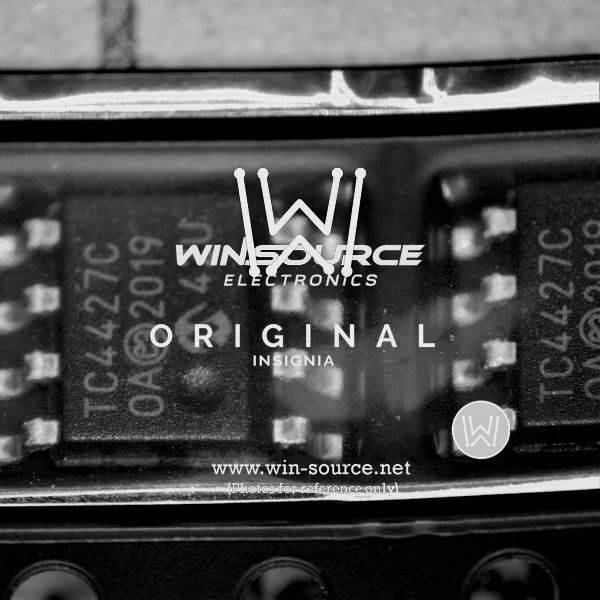

The TC4427COA is offered in an 8-pin SOIC package, providing a compact footprint for space-constrained applications. Microchip Technology's commitment to quality ensures that this MOSFET driver meets the industry standards for performance and reliability, providing a dependable solution for your circuit driving needs.
