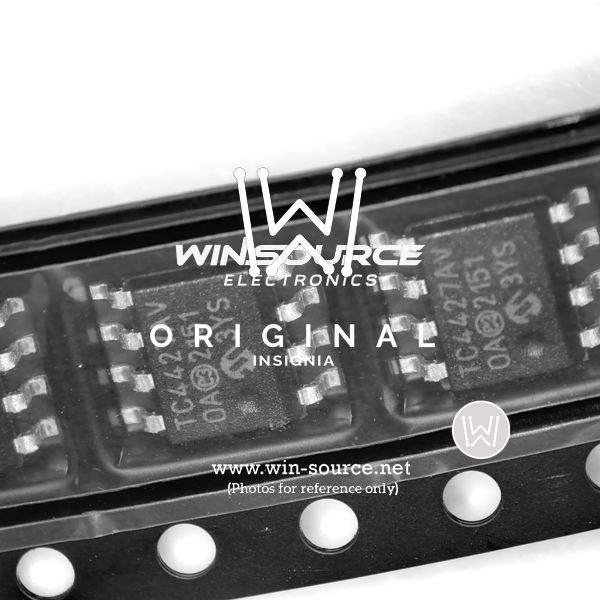

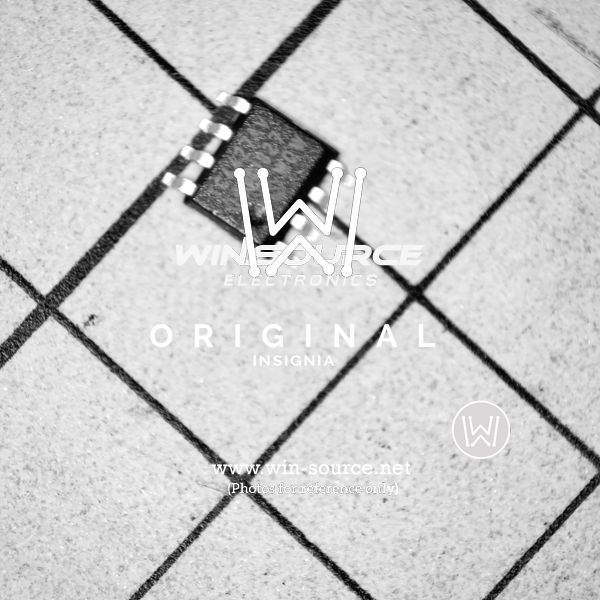

The TC4427AVOA is a robust, high-speed, dual-channel, MOSFET driver designed and manufactured by Microchip Technology, a leading provider of smart, connected, and secure embedded control solutions. This driver is specifically engineered to convert TTL or CMOS input signals into a higher current output with the capability to drive large capacitive loads with excellent speed and performance.
Key Features
- High Output Current: The device can deliver up to 1.5A of peak current per channel, making it suitable for driving large capacitive loads, such as the gates of power MOSFETs.
- Dual Independent Channels: It contains two independent driver channels, which can be used to drive two separate MOSFETs or other high-power transistors.
- Wide Operating Range: The TC4427AVOA operates over a wide voltage range of 4.5V to 18V, providing versatility in different circuit configurations and ensuring compatibility with a variety of logic levels.
- High-Speed Performance: With fast rise and fall times (typically 25ns), this driver is ideal for high-frequency applications.
- Latch-Up Protection: The device is resistant to latch-up up to the maximum rated current, providing reliability under adverse conditions.
- Low Shoot-Through Current: Design features reduce the chance of shoot-through current, enhancing the overall efficiency and reliability of the application.
Applications
The TC4427AVOA is versatile and can be used in a variety of applications, including:
- Switch Mode Power Supplies (SMPS)
- DC-to-DC converters
- Motor and solenoid drivers
- Power MOSFET gate drivers
- Pulse transformers drivers
Quality and Reliability
As with all Microchip products, the TC4427AVOA is built to high-quality standards, ensuring reliability and performance in critical applications. With its robust design and Microchip's commitment to quality, this MOSFET driver is a solid choice for engineers looking to incorporate a trusted driving solution into their electronic designs.
