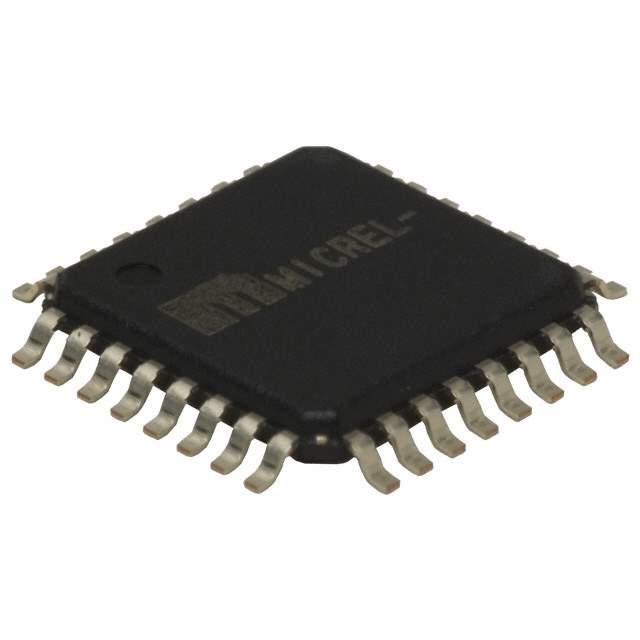

Microchip Technology's SY100EP111UTI: A High-Speed 3.3V/5V LVPECL/ECL Clock Driver

The SY100EP111UTI from Microchip Technology is a versatile and high-performance clock driver that is designed to meet the demanding requirements of high-speed communication and computing applications. This precision device is part of Microchip's high-speed, low-power, low-voltage differential signaling (LVDS) family, offering a robust solution for systems requiring fast signal propagation and minimal skew.

Key Features

• LVPECL/ECL Compatibility: The SY100EP111UTI is compatible with both LVPECL (Low Voltage Positive Emitter Coupled Logic) and ECL (Emitter Coupled Logic) standards, allowing for flexible integration into various system designs.
• High-Speed Operation: With a maximum frequency of up to 3GHz, this clock driver is capable of handling high-speed signal transmission with ease, making it suitable for applications such as high-speed networking, data centers, and telecommunications.
• 3.3V and 5V Power Supply Options: It operates with both 3.3V and 5V power supplies, providing versatility in different operating environments and compatibility with a wide range of other components.
• Differential LVPECL Outputs: The device features differential LVPECL outputs which offer reduced noise susceptibility and improved signal integrity over single-ended signaling methods.
• Internal Input Pulldown Resistors: Built-in input pulldown resistors simplify the interface and help maintain signal integrity when inputs are disconnected.
• Extended Temperature Range: The SY100EP111UTI is designed to operate over an extended temperature range, making it suitable for industrial applications that may experience extreme temperature variations.

Applications

The SY100EP111UTI is ideal for a variety of applications, including but not limited to:

• Clock distribution networks
• Sonnet/SDH and Gigabit Ethernet
• Automated test equipment
• High-speed data acquisition systems
• Backplane and cable driving

Microchip Technology's SY100EP111UTI clock driver offers a blend of high-speed performance, flexibility, and reliability. Its advanced features and compatibility with various logic standards make it an excellent choice for designers looking to optimize their high-speed digital systems.
