Microchip Technology's PIC18C452/JW Microcontroller

The PIC18C452/JW is a high-performance, 8-bit microcontroller from Microchip Technology, designed for advanced level applications requiring robust interfacing and processing capabilities. This microcontroller is part of the PIC18C family, renowned for its enhanced features, versatility, and ease of use in complex electronic designs.

Key Features

• CPU: The PIC18C452/JW boasts a powerful RISC architecture with a CISC instruction set, providing a perfect balance between power consumption and processing speed. The device operates at a maximum frequency of 40 MHz, ensuring swift execution of instructions.
• Memory: It comes equipped with 32 KB of flash memory for program storage, which is both ample for intricate applications and supports in-circuit programming for easy updates. Additionally, there is 1536 bytes of RAM for data manipulation and 256 bytes of EEPROM for non-volatile storage.
• I/O Ports: The microcontroller includes 25 digital I/O pins, giving designers the flexibility to connect a wide array of peripherals and sensors. These pins support various digital communication protocols.
• Timers: Multiple built-in timers aid in managing time-related tasks, ranging from simple delays to complex pulse width modulation (PWM) for motor control.
• Analog Features: An integrated 10-bit Analog-to-Digital Converter (ADC) with 8 channels allows the microcontroller to interface with analog sensors and convert their readings into digital values for processing.
• Communication Modules: The device supports serial communication via USART, SPI, and I²C modules, enabling it to connect and communicate with other microcontrollers, computers, and various peripherals.

Applications

The PIC18C452/JW is ideal for a range of applications, from industrial control systems to consumer electronics. Its robust feature set makes it particularly well-suited for:

• Automotive systems
• Robotics
• Home automation
• Complex multi-sensor monitoring systems

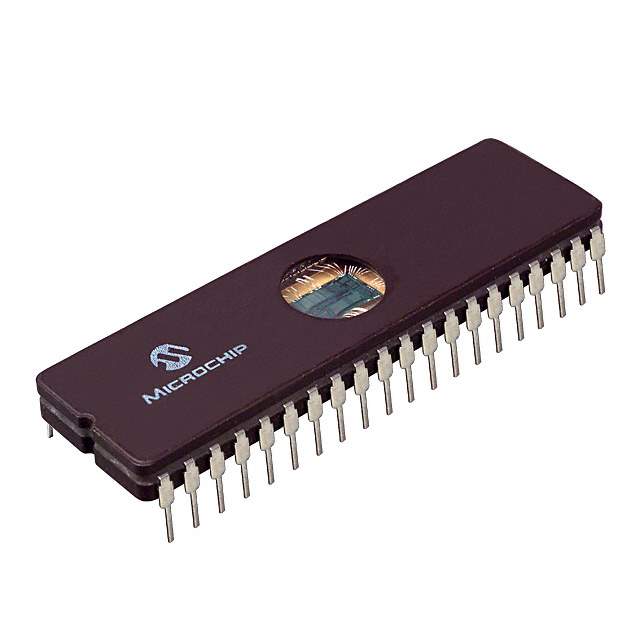

With its windowed ceramic package, the PIC18C452/JW is also an excellent choice for development purposes, allowing for easy erasure and reprogramming of the device using ultraviolet light. This feature is particularly useful for prototyping and iterative development processes.

Overall, the PIC18C452/JW microcontroller from Microchip Technology is a versatile and powerful solution for developers looking to create sophisticated and reliable electronic products.
