CHD-38-30002 TE Connectivity – Price, Stock & Datasheet

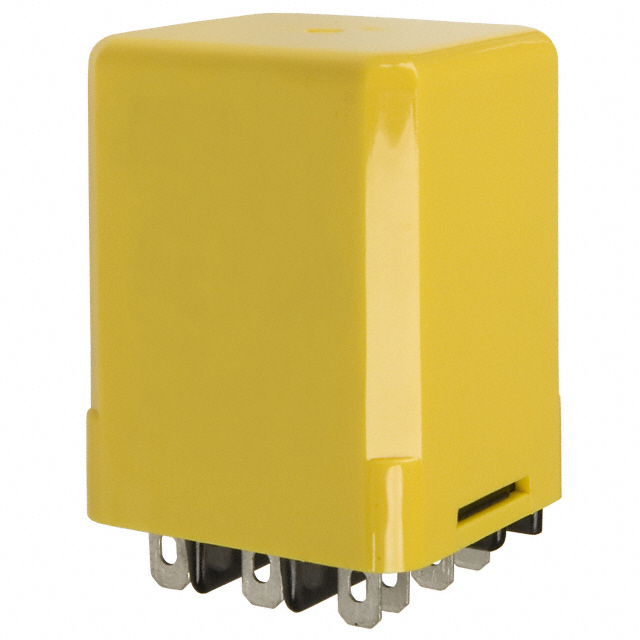

Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Product Status Obsolete
Mounting Type Socketable
Relay Type Mechanical Relay
Function On-Delay
Circuit DPDT (2 Form C)
Delay Time 1 Sec ~ 60 Sec
Contact Rating @ Voltage 10A @ 277VAC
Voltage - Supply 24VDC
Termination Style Plug In, 8 Pin (Octal)
Timing Adjustment Method Hand Dial
Timing Initiate Method Input Voltage
Package Tray
Supply and Demand Status Shortage
Win Source Part Number 1550931-CHD-38-30002
Ultra Librarian 3D Model Ultra Librarian CHD-38-30002 CAD Model
