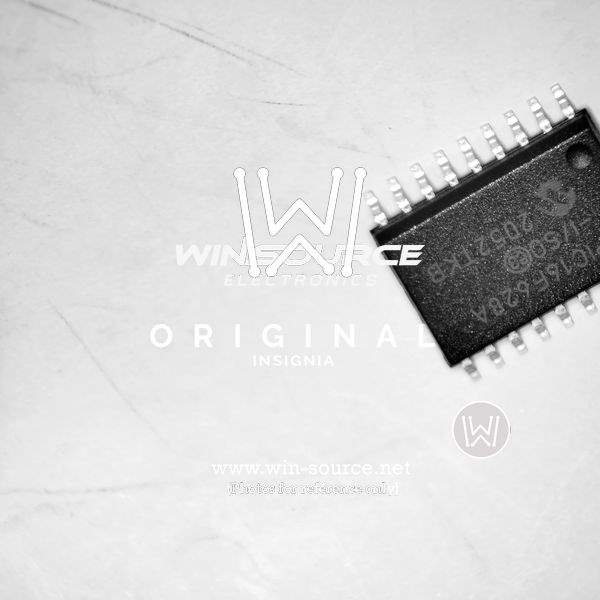

Microchip Technology's PIC16F628A-I/SO Microcontroller

The PIC16F628A-I/SO is a powerful, highly versatile 8-bit microcontroller from Microchip Technology, designed to deliver performance and reliability for a wide range of embedded applications. Encased in a compact SOIC (Small Outline Integrated Circuit) package, this microcontroller is a perfect choice for space-constrained projects without compromising on functionality.

At the heart of the PIC16F628A-I/SO lies a robust RISC architecture that enables the microcontroller to execute most instructions in just a single clock cycle, achieving throughputs approaching 1 MIPS per MHz. This efficiency ensures optimal performance in time-sensitive tasks and allows for a responsive user experience in interactive applications. With its operating voltage ranging from 2.0V to 5.5V, the PIC16F628A-I/SO is adaptable to various power environments, making it suitable for battery-operated and low-power designs.

With 3.5KB of flash memory, the PIC16F628A-I/SO offers ample space for application code, which can be updated in-circuit, thanks to its self-programmable capabilities under software control. The 128 bytes of EEPROM provide reliable data storage for critical application parameters and user settings that must be preserved across power cycles. Additionally, the device boasts 224 bytes of RAM, ensuring enough workspace for complex algorithms and data buffering.

The PIC16F628A-I/SO is equipped with a rich set of peripherals, including two timers, a synchronous serial port (SSP) with SPI and I²C modes, a USART for serial communication, and an analog comparator module. These integrated features reduce the need for additional components, saving cost and board space. The 16 I/O pins, configurable as input or output, offer flexibility in interfacing with external sensors, actuators, and other digital components.

For designers concerned with robustness and security, the microcontroller incorporates Power-on Reset (POR), Device Reset Timer (DRT), Watchdog Timer (WDT), and Brown-out Reset (BOR) functions, ensuring reliable operation under varying conditions. Furthermore, the PIC16F628A-I/SO supports in-circuit debugging via Microchip's MPLAB ICD and the PICkit™ devices, simplifying development and troubleshooting processes.

Whether you're developing consumer electronics, automotive systems, industrial controls, or Internet of Things (IoT) devices, the PIC16F628A-I/SO from Microchip Technology is an excellent choice for a high-performance, feature-rich microcontroller that can meet the demands of your innovative projects.
