Microchip Technology's PIC16C558/JW: A Robust 8-Bit Microcontroller

The PIC16C558/JW from Microchip Technology is an 8-bit CMOS microcontroller that combines high-performance computing power with a range of versatile features. This device is part of the renowned PIC family, which is known for its user-friendly interface and reliable operation across various applications. The PIC16C558/JW is particularly suitable for applications requiring a robust control system with an extended temperature range.

Key Features:

• CPU: The PIC16C558/JW features a powerful 8-bit processor that allows for efficient handling of instructions and smooth operation of complex tasks.
• Memory: It comes with 512 bytes of Electrically Erasable Programmable Read-Only Memory (EEPROM), which provides ample space for storing code and data. The EEPROM also allows for easy firmware updates without the need for additional programming hardware.
• I/O Ports: The device is equipped with 20 input/output pins, enabling it to interface with a wide range of peripherals and sensors. This makes it highly adaptable to different electronic designs and applications.
• Timers: Integrated into the microcontroller are two versatile timers that help in managing time-related tasks such as pulse generation and event counting.
• Watchdog Timer: A built-in watchdog timer ensures that the system remains reliable by resetting the microcontroller in the event of a software malfunction or an operational error.
• Operating Voltage: The PIC16C558/JW operates within a voltage range of 2.5V to 6.0V, making it suitable for both low and standard voltage applications.
• Temperature Range: It is designed to withstand extreme conditions, with an operational temperature range from -40°C to +85°C.

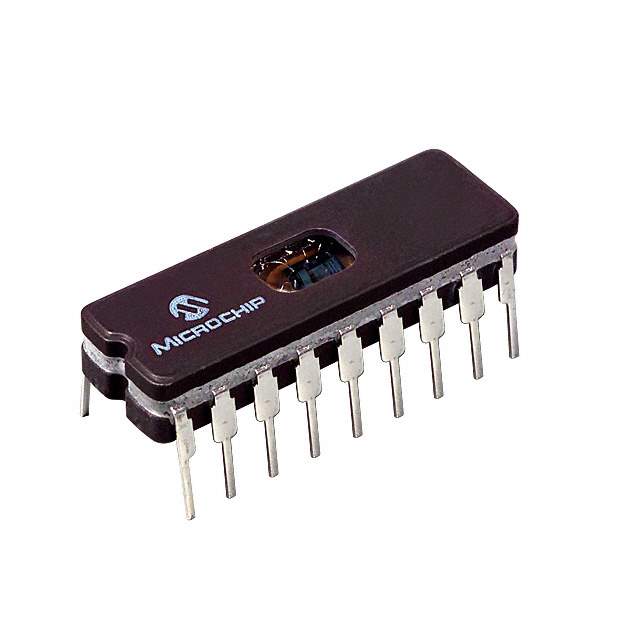

• Packaging: The JW package indicates a windowed ceramic package, which is often used for devices where UV erasure of the onboard memory is required for repeated programming and testing cycles.

Applications:

The PIC16C558/JW is ideal for a variety of applications, including but not limited to:

• Automotive systems
• Industrial control systems
• Consumer electronics
• Medical devices
• Home automation

With its combination of performance, versatility, and reliability, the PIC16C558/JW is a prime choice for designers looking to create sophisticated and durable electronic products.
