Microchip Technology PAC1941T-1E/4MX: High-Precision Power and Energy Monitoring IC

Introducing the PAC1941T-1E/4MX, a state-of-the-art power and energy monitoring integrated circuit (IC) developed by Microchip Technology. This advanced sensor is designed for real-time measurement of power, voltage, current, and energy, making it ideal for a wide range of applications such as power supply monitoring, energy metering, and battery management systems.

The PAC1941T-1E/4MX offers high-precision measurements, with a full-scale voltage range of 0V to 32V and an extended current measurement range. This enables the IC to accurately monitor power supply rails under various load conditions. The high-resolution ADC and multiplexed input channels ensure precise data acquisition, catering to the needs of sophisticated electronic systems.

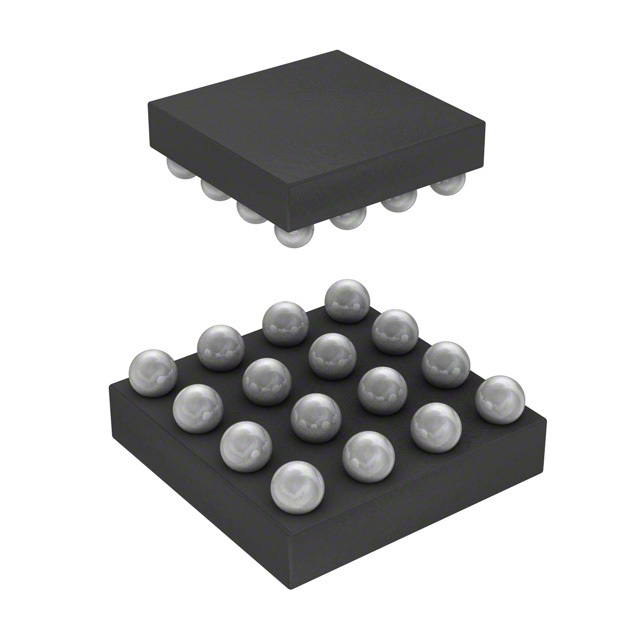

With its I2C interface, the PAC1941T-1E/4MX can easily communicate with microcontrollers, allowing for seamless integration into existing designs. The IC's compact form factor, available in a space-saving package, makes it suitable for use in space-constrained applications.

Key features of the PAC1941T-1E/4MX include:

• High-accuracy measurements for voltage, current, and power
• Integrated low-drift voltage reference
• Fast sampling rate for real-time monitoring
• User-configurable averaging for noise reduction
• Overcurrent and overvoltage alert functions
• On-chip temperature sensor for thermal monitoring
• Non-volatile memory for storing critical data

The PAC1941T-1E/4MX is designed with energy efficiency in mind, featuring a low-power standby mode to conserve energy when not in active use. Its robust design ensures reliable operation even in harsh industrial environments, providing consistent performance over a wide temperature range.

Whether it's for power management in consumer electronics, industrial automation, or telecommunications equipment, the PAC1941T-1E/4MX from Microchip Technology offers a versatile and accurate solution for monitoring power and energy consumption with precision and ease.
