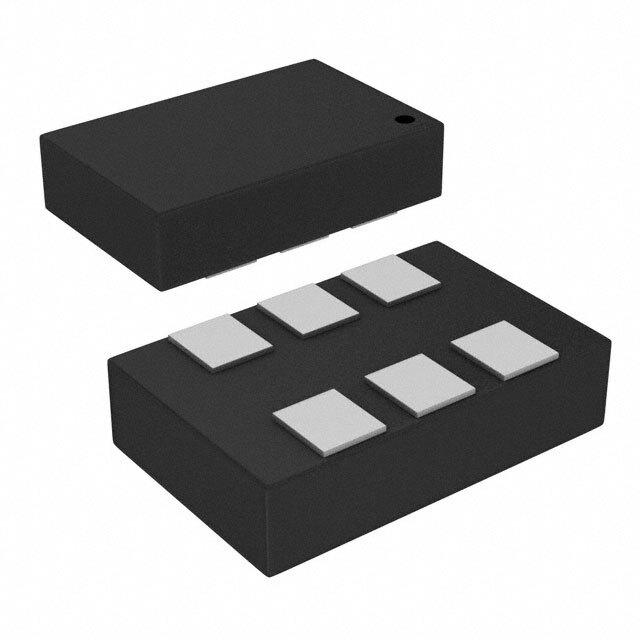

Same model may have multiple batches, images only for reference.
MX553BNR156M250 Microchip Technology – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

MX553BNR156M250

Part No MX553BNR156M250
Manufacturer Microchip Technology
Catalog Oscillators
Description XTAL OSC XO 156.2500MHZ LVPECL
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, ResonatorsOscillators
Mfr Microchip Technology
Series MX55
Packaging Tube
Part Status Active
Base Resonator Crystal
Type XO (Standard)
Frequency 156.25 MHz
Function Enable/Disable
Output LVPECL
Voltage - Supply 2.375V ~ 3.63V
Frequency Stability ±50ppm
Operating Temperature -40°C ~ 85°C
Current - Supply (Max) 120mA
Mounting Type Surface Mount
Package / Case 6-SMD, No Lead
Size / Dimension 0.197" L x 0.126" W (5.00mm x 3.20mm)
Height - Seated (Max) 0.055" (1.40mm)
Base Product Number MX553BNR156M250
Ultra Librarian 3D Model Ultra Librarian MX553BNR156M250 CAD Model
