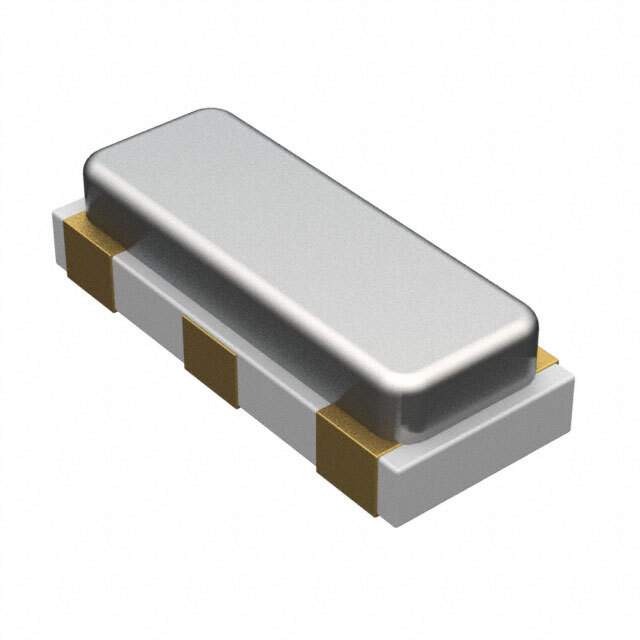

CSTNE12M0G520000R0 Real Image
Same model may have multiple batches, images only for reference.

CSTNE12M0G520000R0

Part No CSTNE12M0G520000R0
Manufacturer Murata Electronics North America
Catalog Oscillators
Description CERAMIC RES 12.0000MHZ 10PF SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Crystals
Estimated Pruduction Lead Time 18 Weeks
Features 12 MHz Ceramic Resonator Built in Capacitor 10 pF ±0.2% -40°C ~ 85°C Surface Mount
Manufacturer Murata Electronics North America
Series CERALOCK® CSTNE
Package Reel - TR
Operating Temperature Range -40°C ~ 85°C
Mounting Surface Mount
Package 3-SMD, Non-Standard
Family Name CSTNE
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8548.90.0100
Quantity per package 3000
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 867412-CSTNE12M0G520000R0
Ultra Librarian 3D Model Ultra Librarian CSTNE12M0G520000R0 CAD Model

Description

It is part of the CERALOCK® CSTNE series and is a ceramic resonator with a built-in capacitor of 10 pF ±0.2%.

  • Series: CERALOCK® CSTNE
  • Built-in Capacitor: 10 pF ±0.2%
  • Operating Temperature: -40°C ~ 85°C
  • Mounting Type: Surface Mount
