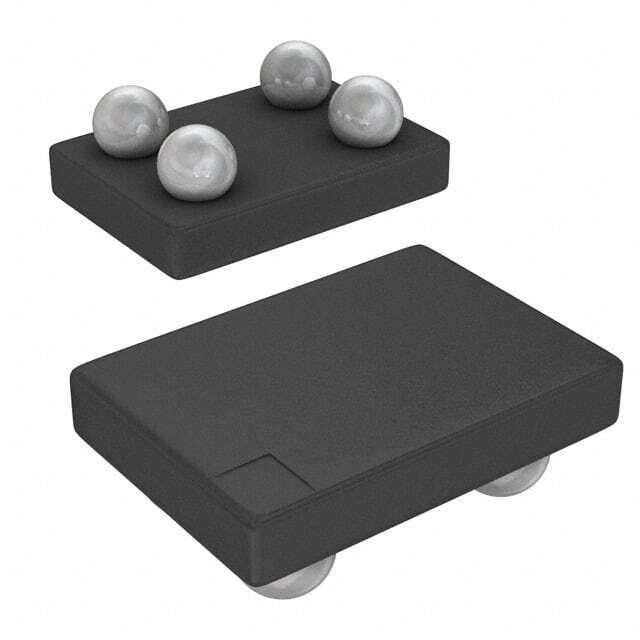

Same model may have multiple batches, images only for reference.
ASCSM-12.000MHZ-LR-T
Same model may have multiple batches, images only for reference.

ASCSM-12.000MHZ-LR-T

Part No ASCSM-12.000MHZ-LR-T
Manufacturer Abracon LLC
Catalog Oscillators
Description MEMS OSC XO 12.0000MHZ CMOS SMD
Datasheet
ASCSM-12.000MHZ-LR-T Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Crystals
Features 12 MHz XO (Standard) CMOS Oscillator 1.7V ~ 3.6V Enable/Disable 4-UFBGA, CSPBGA
Manufacturer Abracon LLC
Series ASCSM, Pure Silicon™
Package Reel - TR
Part Status Obsolete
Operating Temperature Range -40°C ~ 85°C
Mounting Surface Mount
Package 4-UFBGA, CSPBGA
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Other Part Number 535-12020-1, 535-12020-2, 535-12020-6, ASCSM12000MHZLRT
Quantity per package 2500
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 867381-ASCSM-12.000MHZ-LR-T
Ultra Librarian 3D Model Ultra Librarian ASCSM-12.000MHZ-LR-T CAD Model

Description

The Abracon LLC ASCSM-12.000MHZ-LR-T is a crystal oscillator manufactured by Abracon LLC.

  • Series: ASCSM, Pure Silicon™
  • Operating Temperature: -40°C ~ 85°C
  • Function: 12 MHz XO (Standard) CMOS Oscillator, 1.7V to 3.6V Enable/Disable
  • Package / Case: 4-UFBGA, CSPBGA
  • Part Status: Obsolete
  • Supply and Demand Status: Limited
