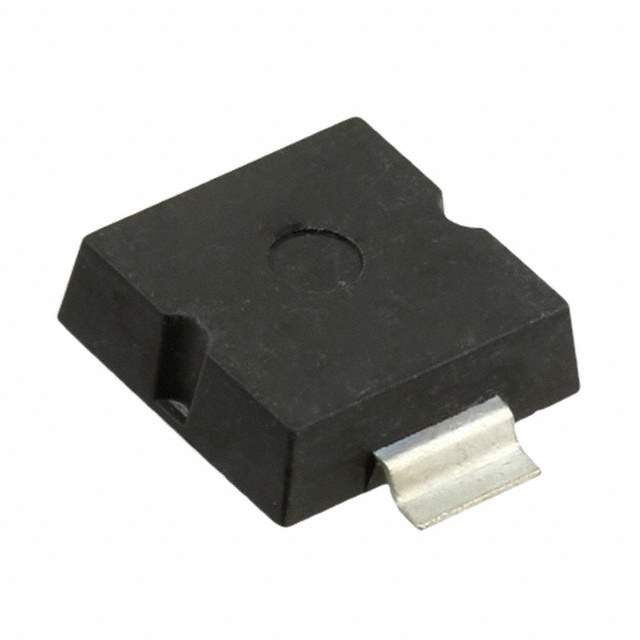

Microchip Technology MPLAD15KP30AE3 TVS Diode

The MPLAD15KP30AE3 is a high-quality Transient Voltage Suppressor (TVS) diode designed and manufactured by Microchip Technology, a leader in the field of microcontroller and analog semiconductors. This component is engineered to protect sensitive electronic equipment from voltage transients induced by system inductance, lightning, and other transient voltage events.

Key Features

• High Surge Capability: With its ability to withstand high energy transients, the MPLAD15KP30AE3 can absorb up to 15kW of peak pulse power (10/1000μs waveform), providing robust protection against surges and spikes.
• Stand-Off Voltage: This device has a stand-off voltage of 30V, making it suitable for a variety of applications where this level of voltage protection is required.
• Unidirectional Protection: The MPLAD15KP30AE3 offers unidirectional surge protection, meaning it is designed to protect circuits from surges occurring in one direction, typically from the positive side to the ground.
• Low Clamping Voltage: It features a low clamping voltage, which ensures that the voltage to which a system is exposed during a transient event is kept to a minimum, thereby reducing the risk of damage to the protected component.
• High Reliability: Manufactured with the quality assurance that Microchip Technology is known for, this TVS diode offers high reliability and performance consistency.
• DO-204AR Package: The MPLAD15KP30AE3 comes in a molded plastic over glass passivated junction in a DO-204AR package, offering a combination of durability and ease of installation.

Applications

The MPLAD15KP30AE3 is suitable for a wide range of applications including:

• Industrial systems
• Communication systems
• Power supply protection
• Automotive electronics
• Aerospace and military applications

In summary, the MPLAD15KP30AE3 from Microchip Technology is a top-performing TVS diode that offers exceptional surge protection for sensitive electronics. Its robust design and reliable performance make it an ideal choice for any application requiring voltage transient protection.
