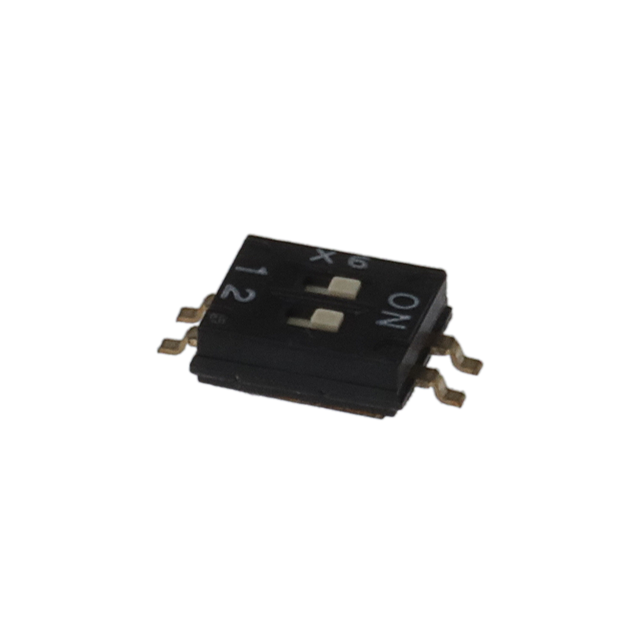

97C02ST Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Switches
Manufacturer Grayhill Inc.
Packaging Tube/Rail
Status Active
Circuit SPST
Number of Positions 2
Current Rating 25mA
Voltage Rating 24VDC
Actuator Type Slide (Standard)
Actuator Level Flush, Recessed
Contact Finish Gold
Height Above Board 0.063" (1.60mm)
Mounting SMD (SMT)
Termination Style Gull Wing
Pitch 0.050" (1.27mm), Half
Washable Yes
Features Tape Seal
Body Material Polyamide (PA), Nylon
Length 0.148" (3.77mm)
Temperature Range - Operating -40°C to 85°C
Mechanical Life 1,000 Cycles
Win Source Part Number 052137-97C02ST
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 97C02ST CAD Model

Description

97C02ST

The 97C02ST component provides exceptional efficiency and is designed to meet the needs of modern electronic applications, offering innovative features and robust performance.

  • Applications:
    • Embedded systems
    • Automated devices
    • Aerospace applications
  • Features:
    • High-frequency operation
    • Reliable construction
    • Easy integration
  • Benefits:
    • Improves system responsiveness
    • Reduces overall system complexity
    • Ensures long-term stability and performance
  • Additional Details:
    • Stringent quality control measures
    • Supports wide operation temperature ranges
