Products specifications Report Issue?

Category Integrated Circuits (ICs) - Clock/Timing - Real Time Clocks
Mfr Microchip Technology
Series -
Package Tube
Product Status Active
Type Clock/Calendar
Features Alarm, Leap Year, Square Wave Output, SRAM, Unique ID
Memory Size 64B
Date Format YY-MM-DD-dd
Interface I²C, 2-Wire Serial
Voltage - Supply 1.8V ~ 5.5V
Voltage - Supply, Battery 1.3V ~ 5.5V
Current - Timekeeping (Max) 1.2µA (Typ) @ 3.3V
Temperature Range - Operating -40°C ~ 85°C
Mounting Type Surface Mount
Package / Case 8-TSSOP, 8-MSOP (0.118", 3.00mm Width)
Supplier Device Package 8-MSOP
Base Product Number MCP79401
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 1356563-MCP79401-I/MS
Ultra Librarian 3D Model Ultra Librarian MCP79401-I/MS CAD Model

Description

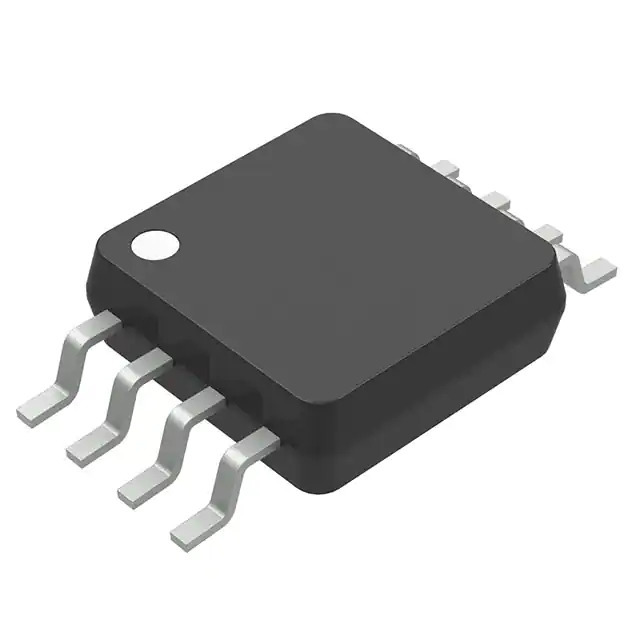

The Microchip MCP79401-I/MS is a highly integrated Real-Time Clock/Calendar (RTCC) optimized for time tracking and data logging solutions. This compact, feature-rich component is housed in an 8-pin MSOP (Micro Small Outline Package) and is designed to maintain accurate timekeeping with minimal power consumption, making it ideal for a wide range of applications including smart energy, industrial, consumer electronics, and networking.

Key Features:

  • Accurate Timekeeping: The MCP79401-I/MS includes a built-in digital trimming circuit that compensates for crystal frequency drift, ensuring high accuracy in timekeeping.
  • Battery Backup: With a battery backup input pin, the device maintains timekeeping in the event of a main power failure, making it reliable for critical applications that require continuous time tracking.
  • EERAM: An integrated Electrically Erasable RAM (EERAM) provides reliable data storage that can be used to store important system data that needs to be preserved during power loss.
  • Programmable Clock Output: The device features a programmable clock output that can be used for clock generation and can be set to a variety of frequencies, providing flexibility for system design.
  • Alarm Function: A versatile alarm function allows users to set alarms on a variety of time scales, from seconds to days, making it adaptable for different scheduling needs.
  • I2C Interface: The MCP79401-I/MS communicates via the industry-standard I2C bus, allowing for easy integration into most microcontroller-based systems.
  • Power Management: Low-power consumption is a hallmark of this device, with a wide voltage range and low current draw in battery-backup mode.
  • Unique ID: The chip provides a factory-programmed, unique MAC address, which can be used for networked device identification, eliminating the need for external EEPROM for MAC storage.

This RTCC is a perfect solution for systems that require an accurate time base for various functions, such as time-stamping, event scheduling, and data logging. Its small footprint and comprehensive set of features make the Microchip MCP79401-I/MS a versatile choice for designers looking to enhance their applications with reliable timekeeping capabilities.
