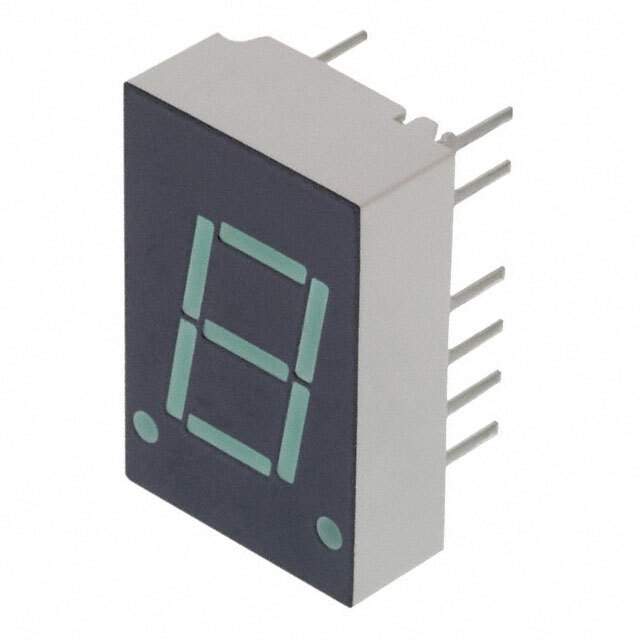

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Optoelectronics
Estimated Pruduction Lead Time 19 Weeks
Features Display Modules - LED Character and Numeric Green 7-Segment 1 Character Common Anode 2.1V 10mA 0.750" H x 0.500" W x 0.250" D (19.05mm x 12.70mm x 6.35mm) 14-DIP (0.300", 7.62mm)
Manufacturer Broadcom Limited
Package Tube
Package 14-DIP (0.300", 7.62mm)
Family Name HDSP-4601
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8531.20.0040
Other Part Number 516-1194-5-NDR, HDSP4601, 516-1194-5
Quantity per package 200
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 873449-HDSP-4601
Ultra Librarian 3D Model Ultra Librarian HDSP-4601 CAD Model

Description

The Broadcom Limited 873449-HDSP-4601 is a display module that features a green 7-segment 1 character common anode.

  • Maximum Voltage: 2.1V
  • Maximum Current: 10mA
  • Dimensions: 0.750" H x 0.500" W x 0.250" D (19.05mm x 12.70mm x 6.35mm)
  • Package: 14-DIP (0.300", 7.62mm)
  • Family: HDSP-4601
  • Category: Optoelectronics
  • ECCN: EAR99
  • Popularity: Medium
  • Supply and Demand Status: Limited
  • Package Quantity: 200
  • MSL Level: 1 (unlimited)
  • Estimated Production Lead Time: 19 weeks
  • REACH Status: Unaffected
  • HTSUS: 8531.20.0040
  • Other Part Numbers: 516-1194-5-NDR, HDSP4601, and 516-1194-5
