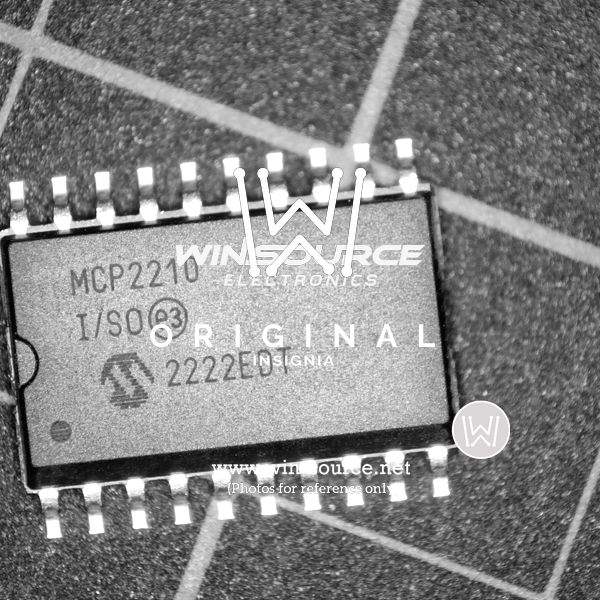

Microchip Technology MCP2210-I/SO Product Overview

The MCP2210-I/SO is a highly integrated USB-to-SPI master converter, developed by the renowned semiconductor manufacturer, Microchip Technology. This compact and efficient device provides a simple and reliable method for communication between a USB host and SPI-based devices, making it an ideal choice for a wide array of applications in various fields such as consumer electronics, industrial automation, and automotive systems.

Key Features

• USB 2.0 Full-Speed Compatible: The MCP2210-I/SO conforms to the USB 2.0 Full-Speed specification, ensuring a data transfer rate of up to 12 Mbps.
• Integrated SPI Interface: This product features a built-in SPI interface that can be easily configured, providing a seamless bridge to your SPI devices.
• Nine GPIOs: It includes nine general-purpose input/output (GPIO) pins, which can be utilized for various control and monitoring purposes.
• Customizable Configuration: The MCP2210-I/SO allows for extensive customization, including adjustable SPI bus parameters, GPIO settings, and USB descriptors via a dedicated configuration utility.
• EEPROM Memory: An onboard 256-byte EEPROM is available for storing custom configurations and user data, ensuring settings are retained between power cycles.
• Compact Form Factor: Offered in a space-saving 14-pin SOIC package, the MCP2210-I/SO is designed for PCBs with limited real estate.

Applications

The versatility of the MCP2210-I/SO makes it suitable for a broad range of applications. It is commonly used in:

• Industrial Control Systems
• Home Automation Systems
• Data Acquisition Systems
• Medical Equipment
• PC and Smartphone Accessories

Technical Specifications

The MCP2210-I/SO operates over a voltage range of 3.0V to 5.5V and is characterized for operation from -40°C to +85°C (industrial temperature range). It supports SPI clock frequencies up to 20 MHz and comes with a comprehensive software development kit (SDK) to facilitate integration and development.

Conclusion

Microchip Technology's MCP2210-I/SO is an excellent solution for designers looking to add USB connectivity to their SPI-based systems with minimal hassle and maximum flexibility. Its comprehensive feature set, combined with Microchip's support and reliability, makes it a valuable component for any USB-to-SPI application.
