Products specifications Report Issue?

Category Integrated Circuits (ICs) - Specialized ICs
Mfr Microchip Technology
Package Tray
Product Status Active
Programmable Not Verified
Type 10/100 Integrated Switch
Applications Port Switch/Network Interface
Mounting Type Surface Mount

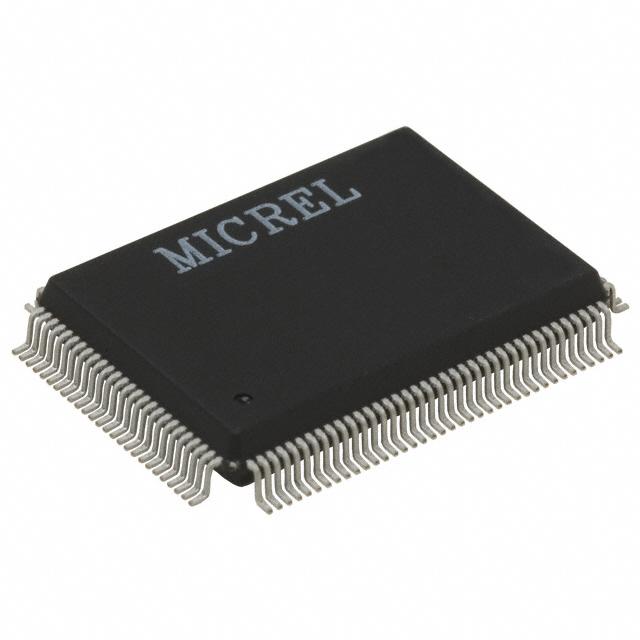

Package / Case 128-BFQFP
Supplier Device Package 128-PQFP (14x20)
Base Product Number KSZ8995
Standard Package 66 pcs
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN 5A991B1
HTSUS 8542.39.0001
Win Source Part Number 171375-KSZ8995X
Ultra Librarian 3D Model Ultra Librarian KSZ8995X CAD Model

Description

Microchip Technology's KSZ8995X Family

The KSZ8995X series from Microchip Technology is a comprehensive portfolio of integrated 5-port switch on a chip ICs, designed to enable networked communication in embedded systems. These versatile chips are particularly suitable for applications in the consumer, SME (Small and Medium-sized Enterprises), and SOHO (Small Office/Home Office) markets, where efficient and reliable network connectivity is a must.

Key Features

  • Integrated 5-Port Switch: The KSZ8995X series integrates a 5-port Ethernet switch with a PHY and frame buffer, supporting 10/100Mbps connectivity for each port.
  • Advanced Switch Capabilities: It includes features such as auto-negotiation, auto MDI-X crossover, and IEEE 802.1p QoS prioritization, ensuring robust data communication and traffic management.
  • Low Power Consumption: Designed with energy efficiency in mind, the KSZ8995X family offers power-saving features that reduce overall power usage, making them ideal for eco-friendly solutions.
  • Flexible Management: These chips can be managed via SPI or I²C interfaces, allowing for easy integration into existing systems and providing flexibility for system management.
  • VLAN Support: The series supports up to 16 VLANs, providing network segmentation and enhanced security.

Applications

The KSZ8995X family is well-suited for a variety of applications, including:

  • Home Networking Equipment
  • Network Printers and Servers
  • Gateway Routers
  • Integrated Access Devices (IADs)
  • Set-Top Boxes
  • Network Attached Storage Devices

With its blend of performance, power efficiency, and advanced features, the KSZ8995X series from Microchip Technology represents a robust solution for building reliable, high-performance networked devices in a compact form factor.
